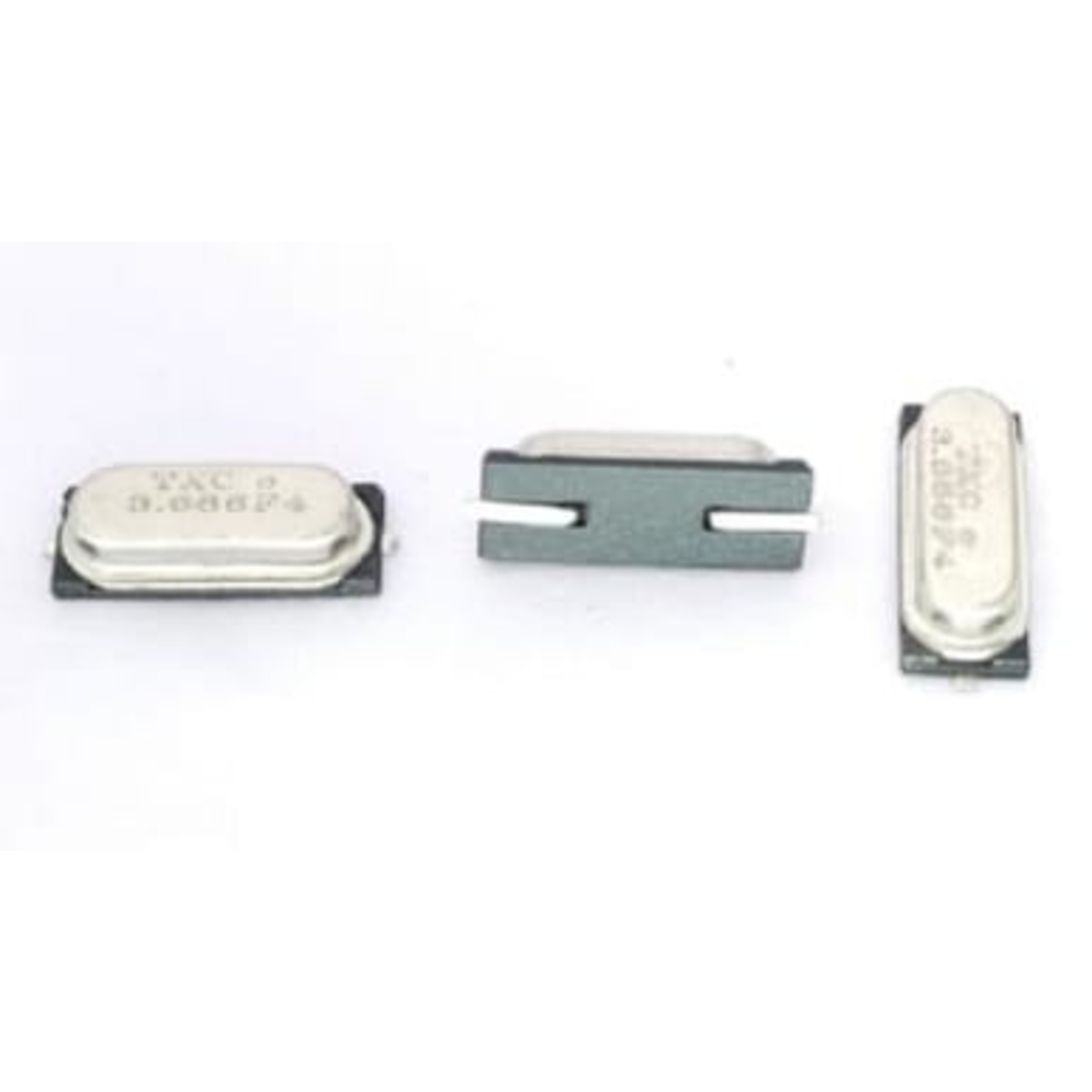

3.6864MHz SMD Crystal HC-49/US Quartz Crystal Oscillator (3.6864MHz Crystal Resonator)

The 3.6864MHz SMD Crystal HC-49/US is a precision quartz crystal resonator designed for clock generation, microcontroller timing, UART communication circuits, and embedded electronic applications. It provides a highly stable frequency reference with reliable oscillation performance, making it ideal for digital systems and serial communication equipment.

The 3.6864MHz frequency is widely used in UART and serial communication applications due to its ability to generate accurate baud rates with minimal timing error.

Key Features -

• 3.6864MHz precision quartz crystal

• HC-49/US SMD package

• Stable frequency generation

• Low power operation

• Reliable timing performance

• Low frequency drift characteristics

• Suitable for communication and control circuits

Specifications -

• Product type - Quartz Crystal Resonator

• Frequency - 3.6864MHz

• Package type - HC-49/US SMD

• Mounting type - Surface Mount Device (SMD)

• Oscillation mode - Fundamental Mode

• Frequency stability - Stable Oscillation Performance

• Load capacitance - Standard Crystal Load Capacitance

• Operating temperature - Suitable for Electronic Applications

• Additional features - Low Frequency Drift, Compact Design, Reliable Clock Generation

Applications -

• Microcontroller clock circuits

• UART and serial communication systems

• Embedded electronic systems

• Frequency reference applications

• Digital timing circuits

• Communication equipment

• Industrial control systems
