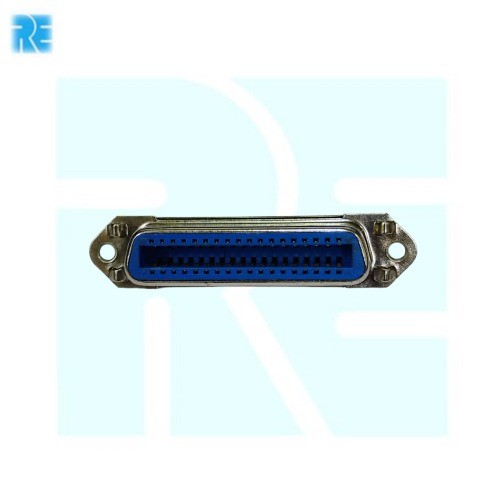

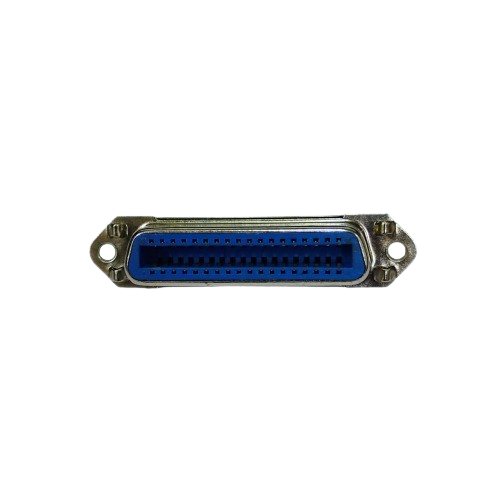

36 Pin Centronics Female Connector (DIP Type, PCB Mount, Printer Connector)

The 36 Pin Centronics Female Connector is designed for multi-pin signal and parallel communication connections in printers, industrial equipment, embedded systems, and electronic interface applications. Its DIP-type through-hole PCB mounting configuration allows the connector to be directly soldered onto a printed circuit board for secure mechanical and electrical connections.

Key Features -

• 36-pin Centronics female connector

• DIP-type through-hole PCB mounting

• Designed for parallel signal and data connections

• Multi-pin connector configuration

• Insulated housing with metal contacts

• Suitable for printer and interface applications

• Secure PCB-mounted construction

Specifications -

• Product Type: Centronics Connector

• Connector Type: Female

• Number of Contacts: 36

• Mounting Type: DIP Through-Hole PCB Mount

• Termination Type: Through-Hole Solder

• Contact Material: Metal alloy, exact composition to be verified

• Housing Material: Insulated plastic with metal components

• Signal Type: Parallel and multi-signal connection

• Connector Orientation: Refer to product mechanical drawing

• Voltage and Current Ratings: Refer to manufacturer specifications

Applications -

• Printer communication interfaces

• Parallel data communication

• Industrial electronic equipment

• Embedded electronic systems

• Instrumentation systems

• Computer peripheral interfaces

• PCB-based interface equipment
