CZL601 3Kg Load Cell Weight Sensor (Aluminium Strain Gauge, 1 Qty)




Collect upto 7:30 PM (Mon – Sat)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
CZL601 3Kg Load Cell Weight Sensor (Aluminium Strain Gauge, 1 Qty)

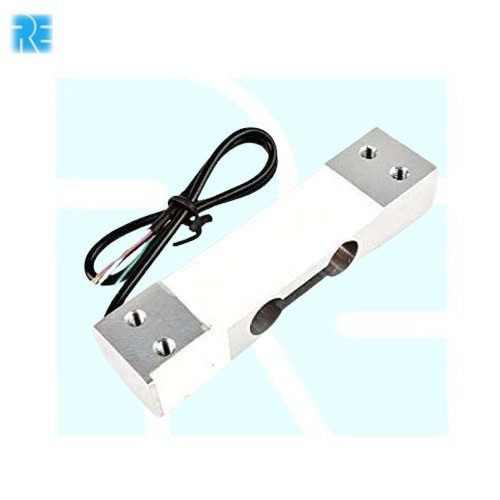

The CZL601 3Kg Load Cell is a precision strain gauge based weight sensor designed for electronic weighing scales, force measurement systems and industrial automation applications. Featuring a rated load capacity of 3Kg and a durable aluminium alloy construction, this load cell converts applied force into a proportional electrical signal for accurate weight measurement.
The CZL601 load cell operates using strain gauges that detect small mechanical deformations when a load is applied. These resistance changes produce a low level differential voltage signal that can be measured using a suitable amplifier or analog to digital converter. It is commonly used with HX711 load cell amplifier modules for integration with Arduino, ESP32, Raspberry Pi and other microcontroller based weighing systems.
Key Features
• CZL601 strain gauge based electronic load cell
• 3Kg rated weight measurement capacity
• Aluminium alloy construction for mechanical stability
• High sensitivity for small weight measurements
• Compact design suitable for electronic weighing scales
• Low creep and good measurement repeatability
• Compatible with HX711 load cell amplifier modules
• Suitable for Arduino and microcontroller projects
