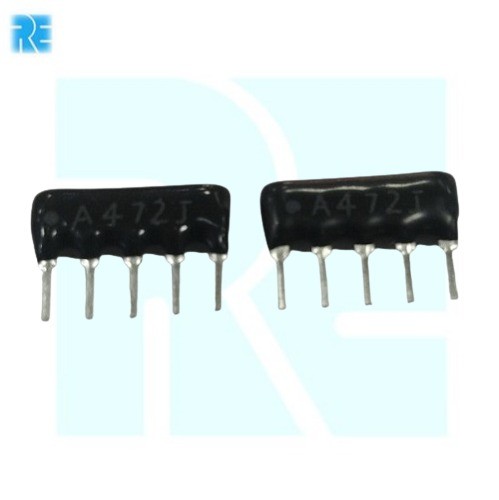

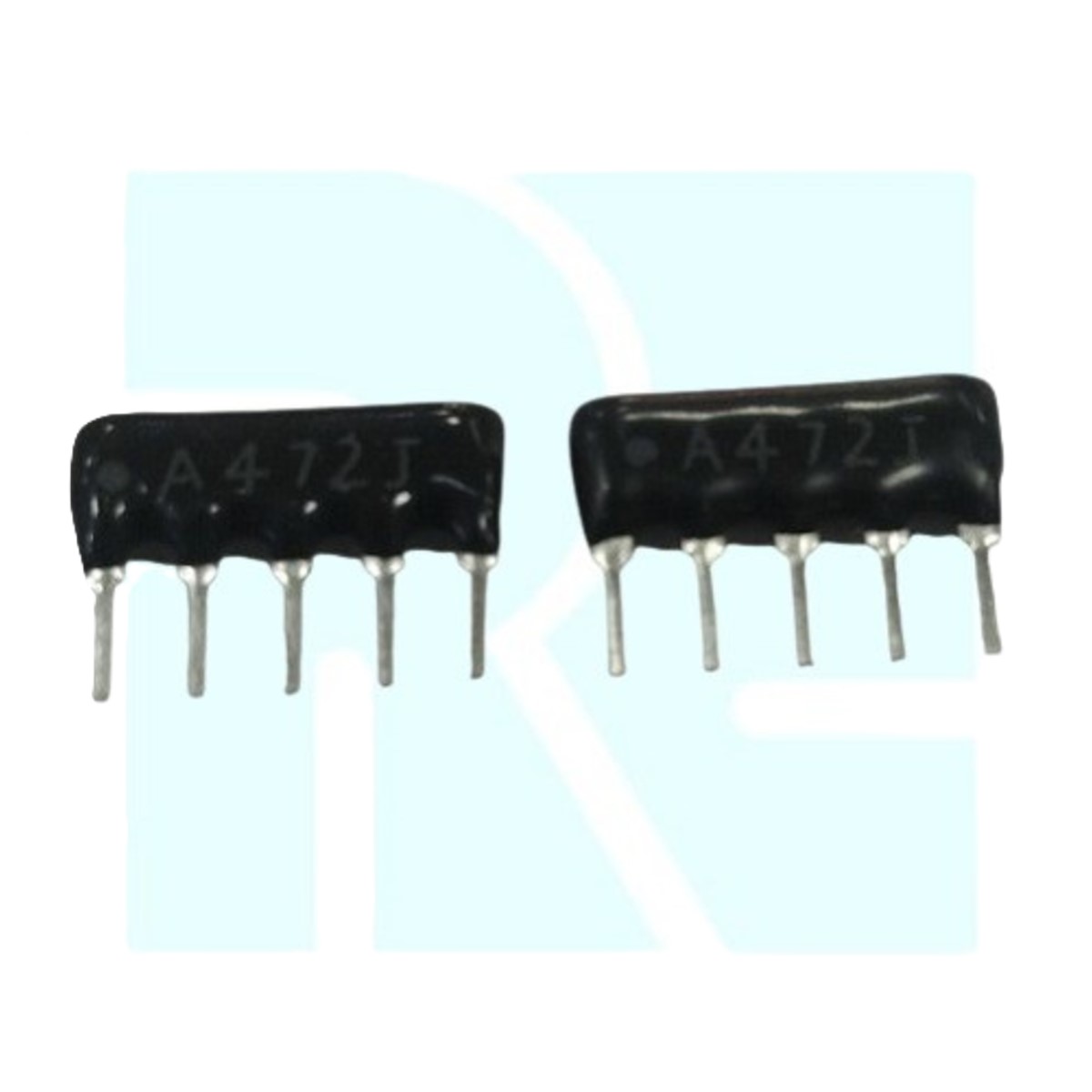

4.7K Ohm 5 Pin Resistor Network SIP 2mm Pitch (4.7K Ohm Resistor Array)

The 4.7K Ohm 5 Pin Resistor Network is a compact Single In-Line Package (SIP) resistor array designed to provide multiple matched resistors in a single package. With a 2mm pin pitch, it is ideal for pull-up networks, pull-down networks, bus termination, signal conditioning, and digital circuit applications where space-saving and simplified PCB layouts are important.

Key Features -

• 4.7K Ohm resistor network

• 5 pin SIP package

• Compact space-saving design

• Matched resistor values

• 2mm pin pitch

• Simplifies PCB routing and assembly

• Reliable electrical performance

Specifications -

• Product type - Resistor network

• Resistance value - 4.7K Ohm

• Number of pins - 5 Pin

• Package type - SIP (Single In-Line Package)

• Pin pitch - 2mm

• Resistor type - Integrated resistor array

• Mounting type - Through Hole Mount

• Configuration - Network resistor package

• Application type - Signal conditioning and digital interfacing

• Material - Ceramic substrate with resistive elements

• Additional features - Reduces component count and PCB space requirements

Applications -

• Pull-up resistor networks

• Pull-down resistor networks

• Microcontroller interfacing

• Digital logic circuits

• Bus termination networks

• Embedded electronic systems

• DIY electronics projects
