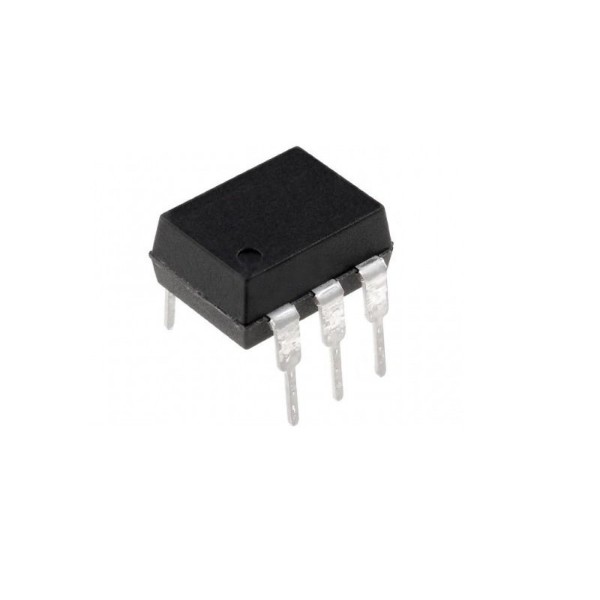

4N35 EVE Phototransistor Optocoupler IC (DIP 6)

The 4N35 EVE is a general purpose optocoupler featuring an infrared LED optically coupled to an NPN phototransistor. It provides electrical isolation between input and output circuits and is commonly used for signal isolation, switching, logic interfacing and control applications.

Key Features -

• Phototransistor output optocoupler

• Infrared LED input

• NPN phototransistor output

• Single channel configuration

• Provides electrical isolation between circuits

• Phototransistor base connection available

• Suitable for digital and analog signal isolation

• Useful for logic and control interfacing

• General purpose optoisolator

• DIP 6 through hole package

Specifications -

• Part Number: 4N35 EVE

• Component Type: Optocoupler

• Input Type: Infrared LED

• Output Type: NPN Phototransistor

• Number of Channels: 1

• Isolation Method: Optical

• Package Type: DIP 6

• Number of Pins: 6

• Mounting Type: Through Hole

Applications -

• Signal isolation

• Microcontroller interfacing

• Logic isolation

• Switching circuits

• Industrial control systems

• Power supply feedback circuits

• Motor control circuits

• Noise isolation

• Measurement equipment

• Electronic control circuits
