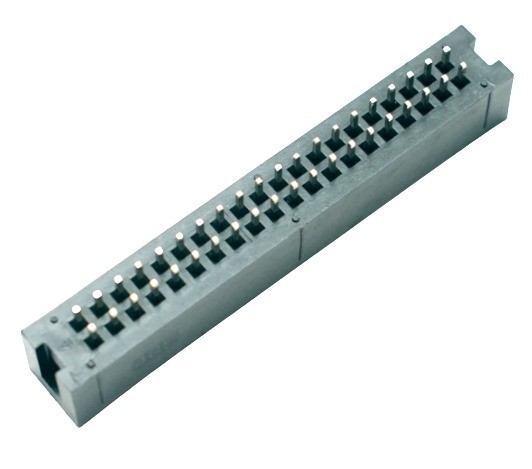

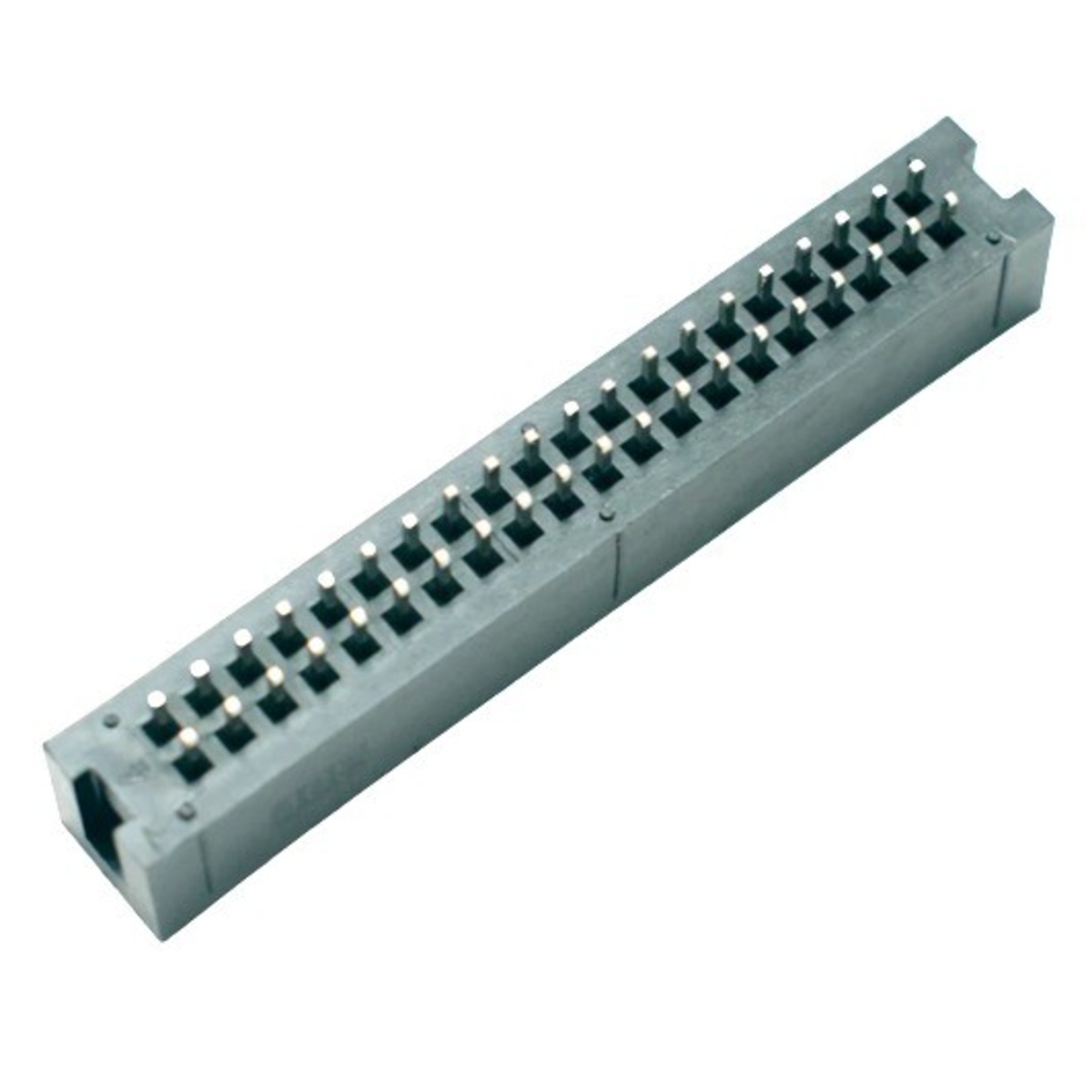

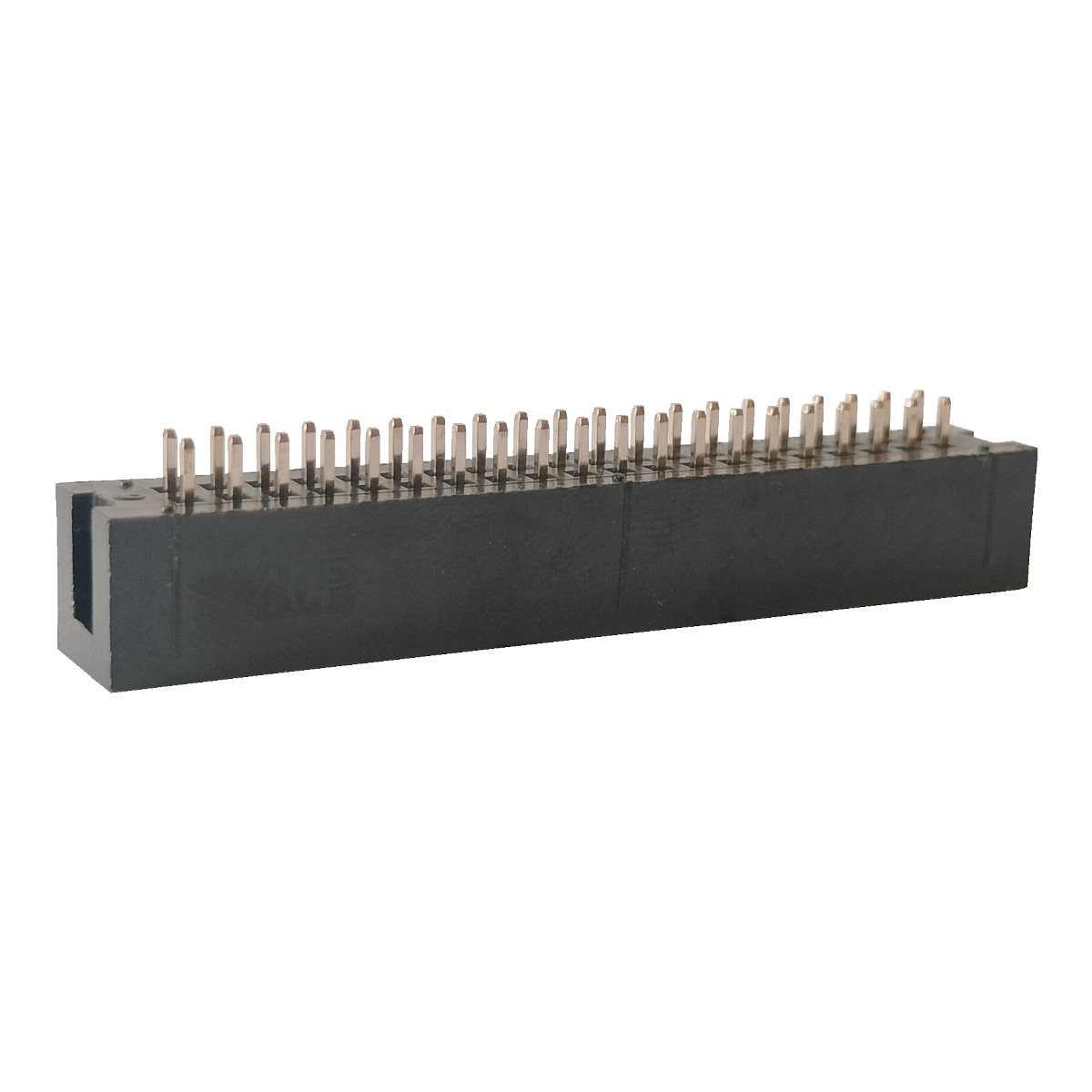

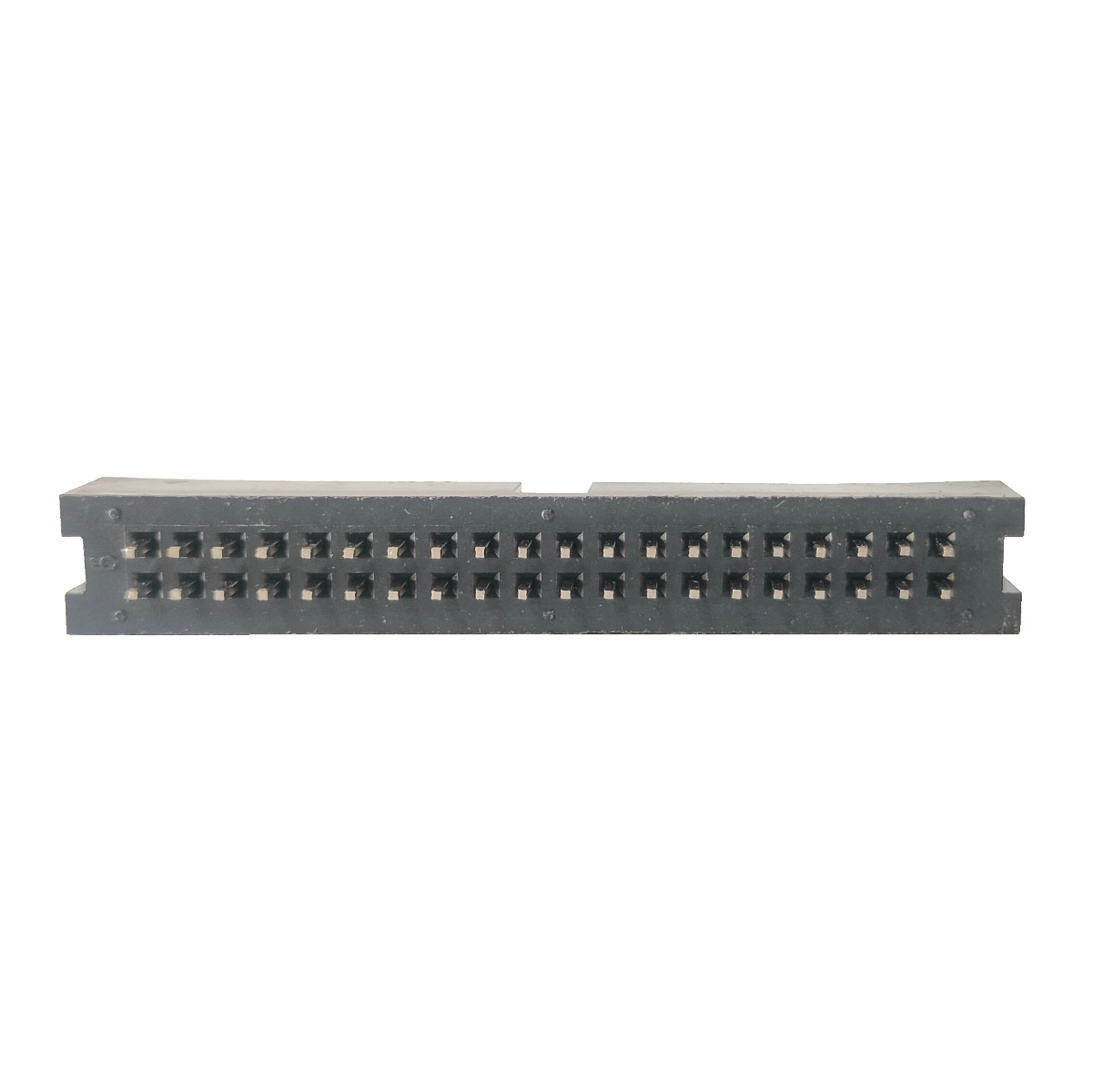

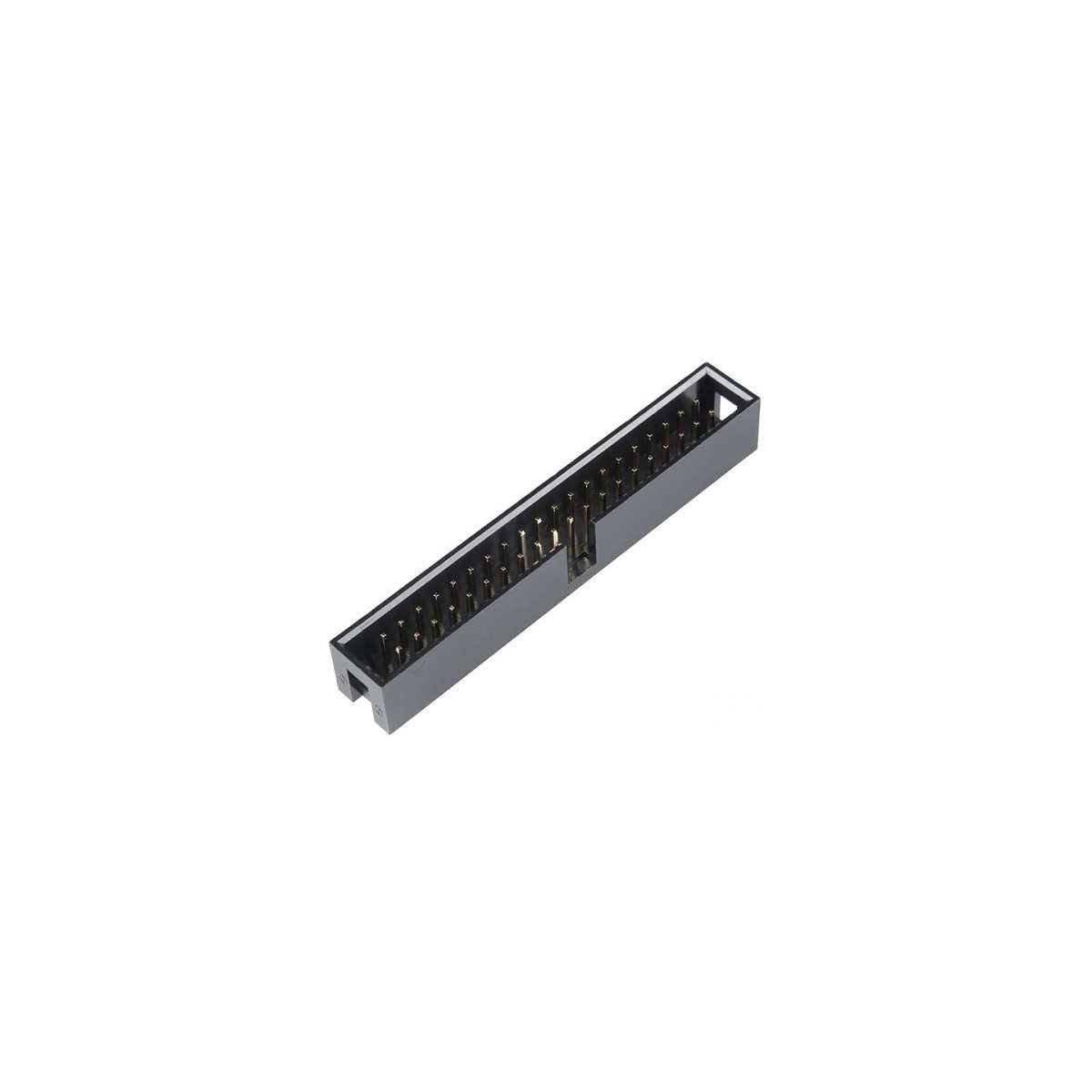

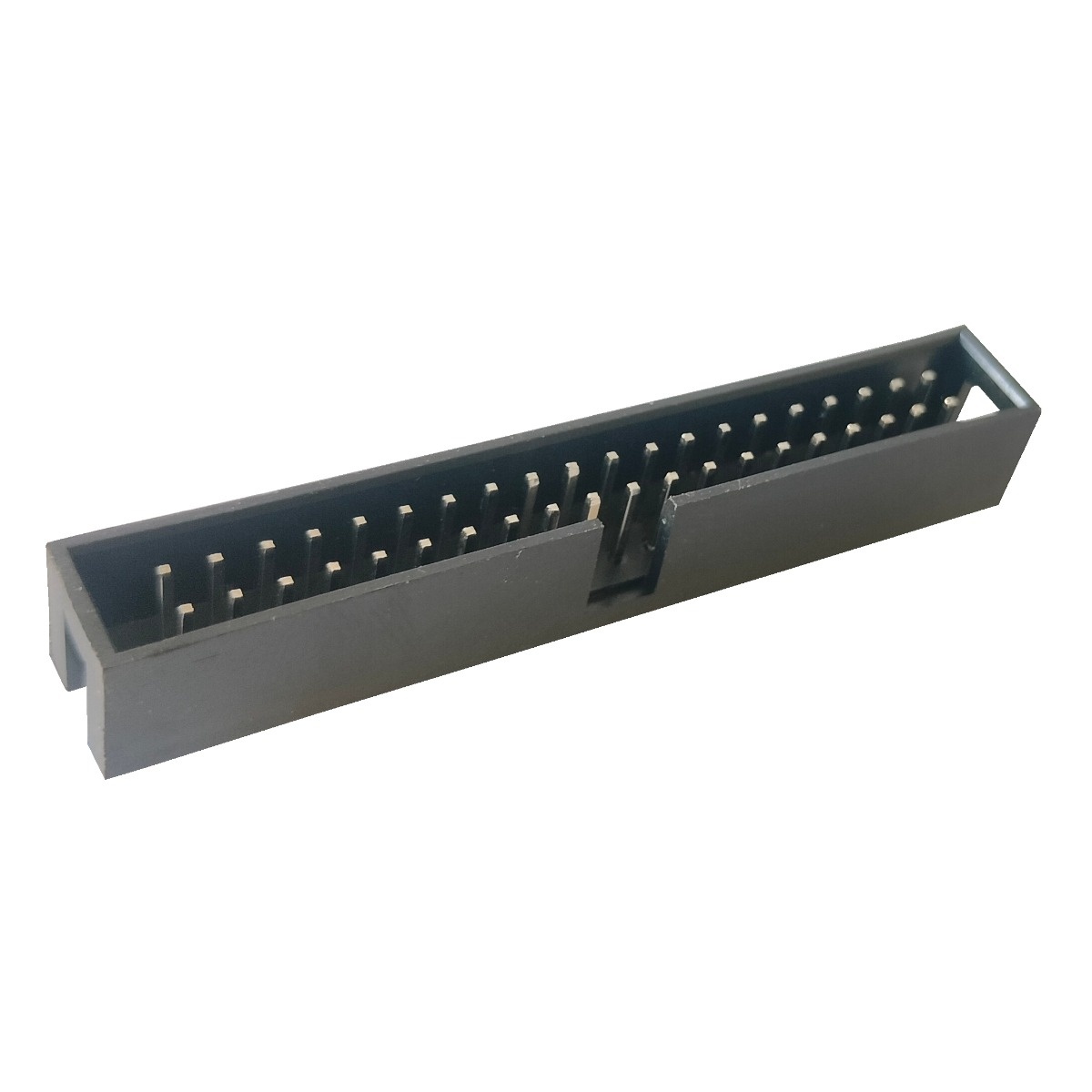

40 Pin FRC IDC Box Header Straight Male Connector 20x2 2.54mm (Ribbon Cable IDC Header)

The 40 Pin FRC IDC Box Header Straight Male Connector is designed for reliable PCB to ribbon cable connections in embedded systems, industrial electronics, communication equipment, development boards, and computer interfaces. It features a 20x2 dual-row configuration, standard 2.54mm pitch, and shrouded construction for secure and correctly aligned IDC ribbon cable connections.

Key Features -

• 40 pin straight male IDC header

• 20x2 dual-row pin configuration

• Standard 2.54mm pitch

• FRC and IDC ribbon cable compatible

• Shrouded box header design

• Through-hole PCB mounting

• Secure ribbon cable alignment

• Durable insulated connector body

Specifications -

• Product Type: IDC Box Header Connector

• Connector Type: FRC IDC Male Header

• Number of Pins: 40 Pins

• Pin Configuration: 20x2 Dual Row

• Pitch: 2.54mm

• Mounting Type: Straight Through-Hole PCB Mount

• Header Type: Straight Male Box Header

• Cable Compatibility: FRC and IDC Ribbon Cable

• Contact Material: Metal Alloy

• Housing Material: Insulated Plastic

• Termination Type: Through Hole

• Additional Features: Shrouded construction, reliable signal transmission, secure PCB connection, accurate connector alignment, durable design

Applications -

• PCB interconnections

• Ribbon cable assemblies

• Embedded electronic systems

• Industrial control circuits

• Communication equipment

• Development boards

• Computer peripheral interfaces

• DIY electronic projects
