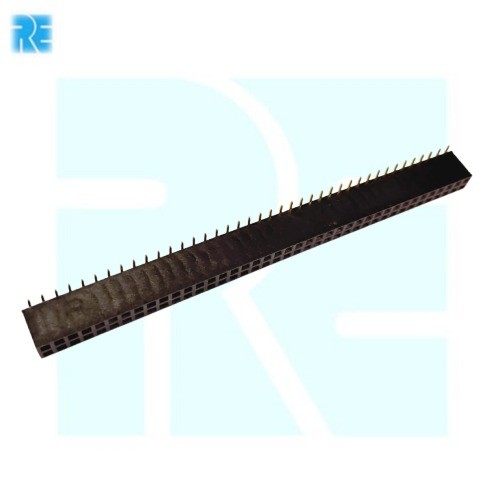

40 x 2 Pin SMT Female Berg Strip Header (2.54 mm Pitch, Double Row, Gold Plated)

The 40 x 2 Pin SMT Female Berg Strip Header is a surface-mount connector designed to receive compatible male header pins and establish electrical connections between printed circuit boards or electronic modules. It features 80 positions arranged in two parallel rows with a standard 2.54 mm pitch. Gold-plated contacts support reliable electrical connections and resistance to contact corrosion in electronic assemblies.

Key Features -

• 40 x 2 configuration with 80 contact positions

• Standard 2.54 mm pitch

• Surface-Mount Technology (SMT) mounting

• Female socket design with double-row configuration

• Gold-plated contacts for improved contact reliability

• Suitable for board-to-board and module interconnections

Specifications -

• Product Type: Female Berg Strip Header

• Pin Configuration: 40 x 2 rows

• Total Contact Positions: 80

• Pitch: 2.54 mm

• Mounting Type: Surface Mount

• Row Configuration: Double Row

• Connector Gender: Female

• Contact Plating: Gold Plated

• Orientation: Refer to manufacturer specifications

• Insulator Material and Colour: Refer to manufacturer specifications

• Overall Dimensions and PCB Footprint: Verify using the manufacturer’s mechanical drawing

Applications -

• Microcontroller and development boards

• Embedded systems and control circuits

• Surface-mount PCB assemblies

• PCB-to-PCB connections

• Electronic interface and expansion modules

• Industrial electronic equipment
