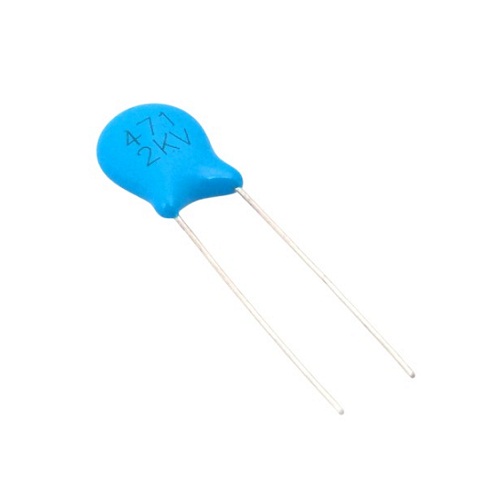

470pF (471) 2kV High Voltage Ceramic Disc Capacitor

The 470pF (471) 2kV High Voltage Ceramic Disc Capacitor is a high-voltage ceramic capacitor designed for reliable operation in circuits exposed to elevated voltages and high-frequency signals. With a 470pF capacitance, 2kV DC voltage rating, and ±20% tolerance, it is well suited for high-voltage power supplies, snubber circuits, flyback transformers, pulse circuits, RF equipment, and EMI suppression applications. Its ceramic dielectric provides excellent electrical insulation, high dielectric strength, and dependable long-term performance.

Key Features -

• Capacitance of 470pF (471)

• High voltage rating of 2kV DC

• Ceramic disc dielectric construction

• ±20% capacitance tolerance

• High insulation resistance and dielectric strength

• Compact through-hole radial lead design

• Suitable for high-voltage and high-frequency circuits

• Reliable performance with long operational life

Specifications -

• Product Type - High Voltage Ceramic Disc Capacitor

• Capacitance - 470pF

• Capacitor Code - 471

• Rated Voltage - 2kV DC

• Tolerance - ±20%

• Dielectric Material - Ceramic

• Mounting Type - Through Hole

• Lead Type - Radial Leads

Applications -

• High-voltage power supplies

• Flyback transformer circuits

• Snubber and surge suppression circuits

• Pulse generation circuits

• RF transmitters and receivers

• EMI/RFI filtering

• Inverter and SMPS circuits

• Test and measurement equipment

• Industrial electronic systems
