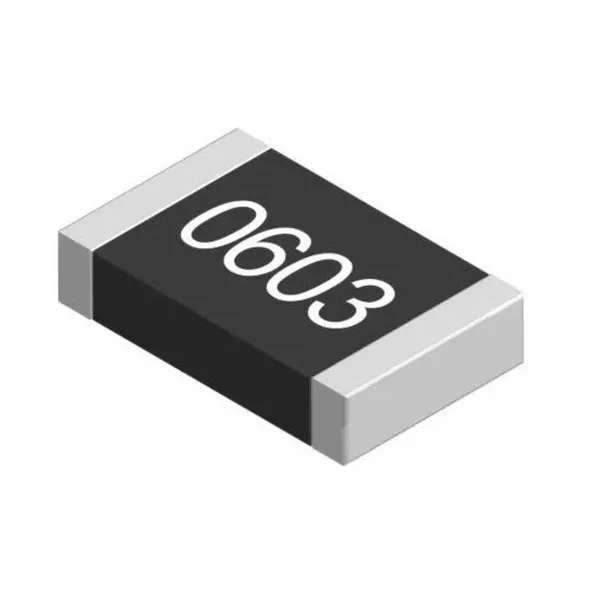

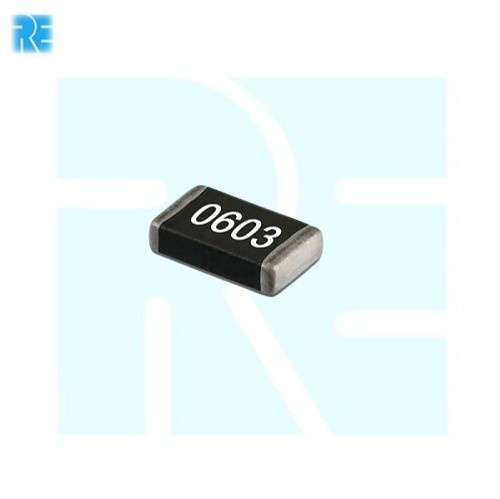

5.6M Ohm 0603 5% SMD Chip Resistor (Surface Mount Resistor)

The 5.6M Ohm 0603 SMD resistor is a compact surface mount chip resistor designed for voltage division, biasing circuits, pull-up and pull-down networks, timing circuits, signal conditioning, and general-purpose electronic applications. Its 0603 package size makes it suitable for high-density PCB layouts and modern electronic designs.

Key Features -

• 5.6M Ohm resistance value

• 0603 SMD package size

• 5% tolerance

• Compact surface mount design

• Stable electrical performance

• Suitable for automated PCB assembly

Specifications -

• Product type - SMD chip resistor

• Resistance value - 5.6M Ohm

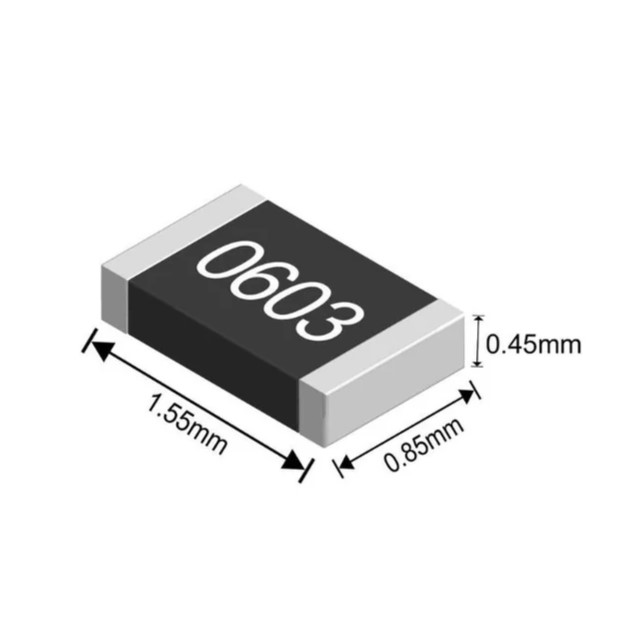

• Package size - 0603

• Tolerance - 5%

• Resistor type - Thick film chip resistor

• Mounting type - Surface Mount Device

• Operating temperature - Suitable for general electronic applications

• Material - Ceramic substrate with resistive film element

• Application type - General-purpose electronic circuits

• Additional features - Compact size, reliable long-term performance, and compatibility with standard reflow soldering processes

Applications -

• Voltage divider networks

• Biasing circuits

• Pull-up and pull-down circuits

• Timing and oscillator circuits

• Signal conditioning applications

• Embedded electronic systems

• DIY electronics projects
