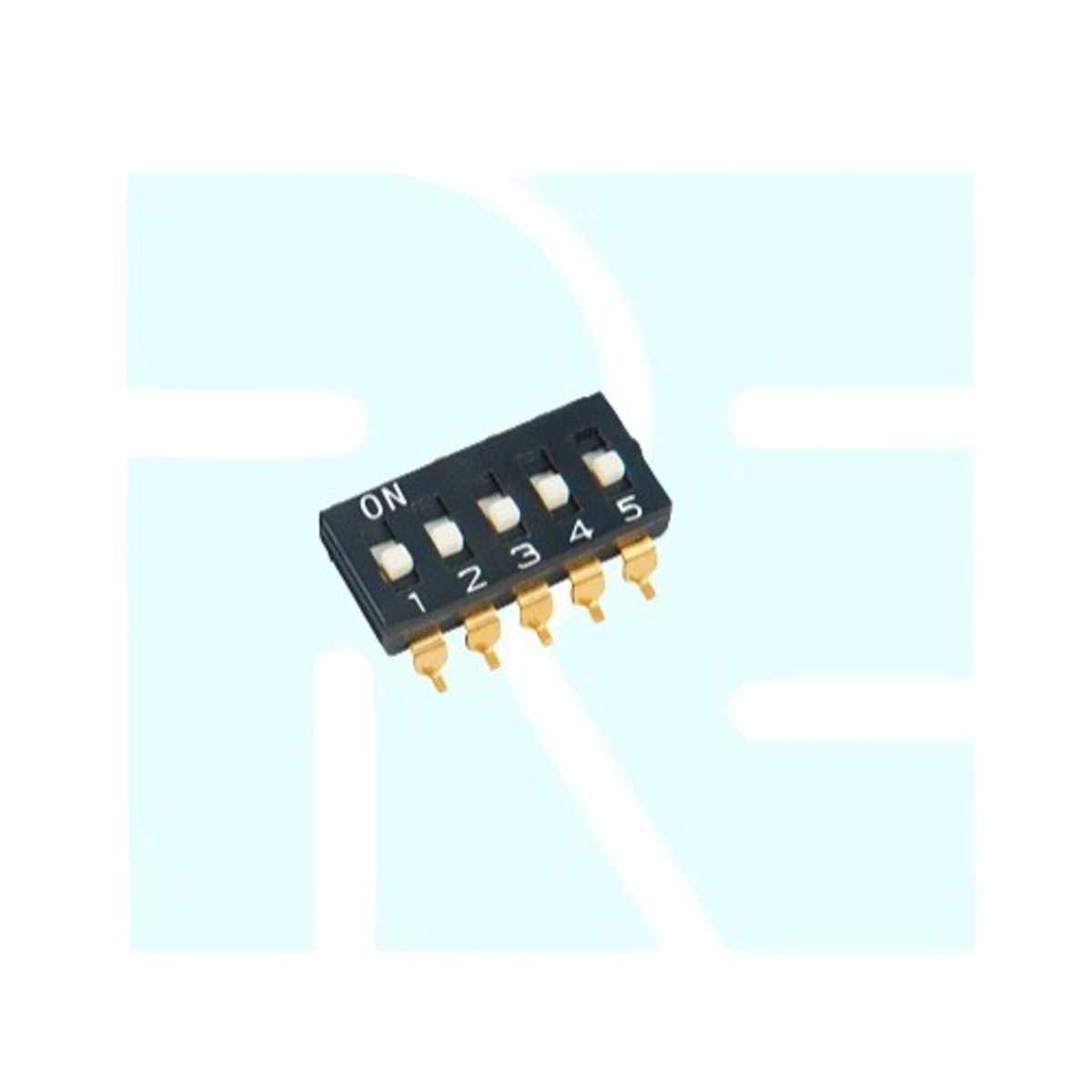

5 Way SMD DIP Switch 2.54mm 10 Pin (Surface Mount Slide Switch)

The 5 Way SMD DIP Switch is a compact surface-mount switch designed for circuit configuration, address selection, feature setting, and control applications in electronic devices. Featuring five independent switches in a single package with a standard 2.54mm pitch and 10-pin configuration, it provides a reliable and space-saving solution for PCB-mounted settings and user-selectable options.

Key Features -

• 5 independent switch positions

• SMD surface mount design

• Standard 2.54mm pitch

• 10-pin configuration

• Compact and space-saving construction

• Reliable contact performance

• Easy PCB integration

Specifications -

• Product type - DIP Switch

• Switch positions - 5 Way

• Mounting type - SMD Surface Mount

• Pin count - 10 Pin

• Pitch spacing - 2.54mm

• Actuation type - Slide Switch

• Contact type - SPST per switch

• Housing material - High-temperature plastic

• Contact material - Metal alloy

• Application - Circuit configuration and address setting

Applications -

• Embedded systems

• Industrial control equipment

• Communication devices

• Development boards

• Address configuration circuits

• Electronic instruments

• PCB configuration settings
