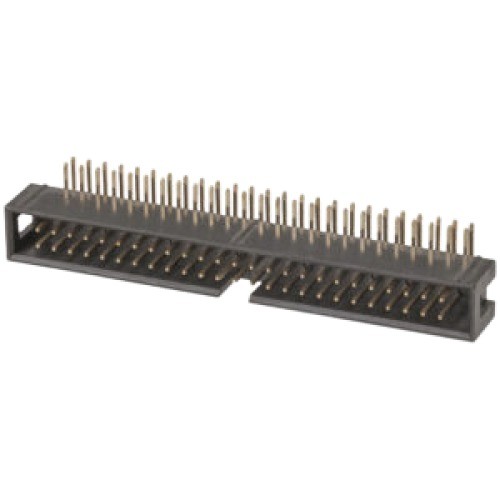

50 Pin FRC IDC Box Header Right Angle Male Connector 25x2 2.54mm (Ribbon Cable IDC Header)

The 50 Pin FRC IDC Box Header Right Angle Male Connector is designed for reliable ribbon cable to PCB connections in embedded systems, industrial electronics, communication equipment, computer interfaces, and development boards. It features a 25x2 dual-row configuration, standard 2.54mm pitch, and right-angle mounting for compact PCB layouts and organized cable routing.

Key Features -

• 50 pin right angle male box header

• 25x2 dual-row pin configuration

• Standard 2.54mm pitch

• FRC and IDC ribbon cable compatible

• Right-angle PCB mounting design

• Shrouded and polarized connector structure

• Reliable PCB signal connectivity

• Durable insulated housing construction

Specifications -

• Product Type: FRC IDC Box Header Connector

• Model: 50 Pin Right Angle Male Header

• Number of Pins: 50 Pins

• Pin Configuration: 25x2 Dual Row

• Pitch: 2.54mm

• Mounting Type: Right Angle Through-Hole PCB Mount

• Header Type: Right Angle Male Box Header

• Connector Type: FRC and IDC Compatible

• Cable Compatibility: Flat Ribbon Cable

• Contact Material: Metal Alloy

• Housing Material: Insulated Plastic

• Termination Type: Through Hole

• Additional Features: Compact right-angle design, polarized housing, secure cable alignment, reliable signal transmission

Applications -

• Ribbon cable interconnections

• Embedded system interfaces

• Industrial electronic circuits

• Communication equipment

• Computer peripheral connections

• Development boards

• PCB communication interfaces

• DIY electronic projects
