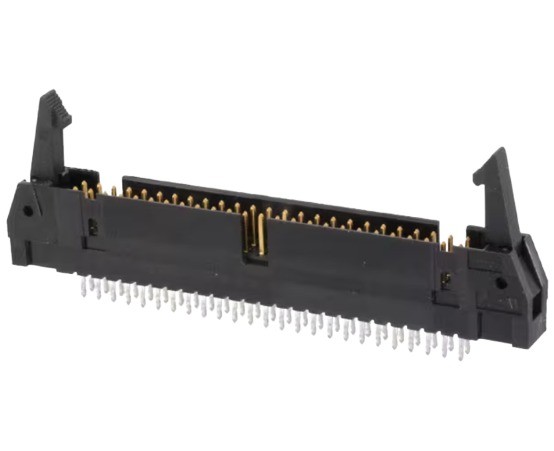

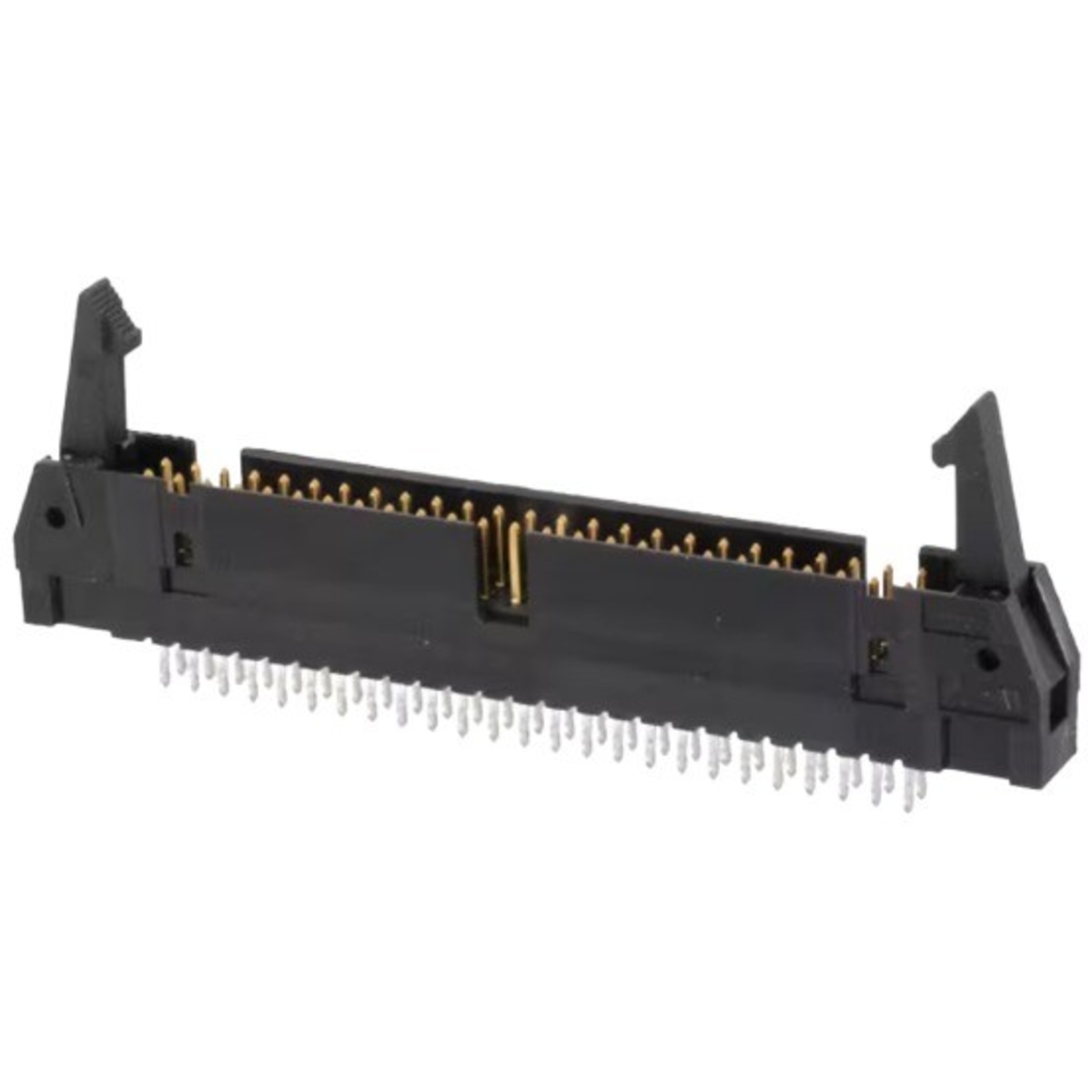

50 Pin FRC IDC Straight Male Header with Lock 25x2 Pin 2.54mm (PCB Mount IDC Box Header Connector)

The 50 Pin FRC IDC Straight Male Header with Lock is a PCB mount IDC box header connector designed for secure ribbon cable connections in embedded systems, industrial electronics, development boards, and communication interfaces. It features a 25x2 dual-row pin configuration with a 2.54mm pitch and integrated polarizing lock, ensuring reliable and error-free mating with standard IDC ribbon cable connectors.

Its durable insulated housing and precision metal contacts provide excellent electrical connectivity, making it ideal for signal transmission and board-to-board or cable-to-board interfacing applications.

Key Features -

• 50 pin straight male IDC box header

• 25x2 dual row pin configuration

• Standard 2.54mm pin pitch

• Compatible with FRC and IDC ribbon cables

• Integrated locking and polarization mechanism

• Through hole PCB mounting

• Reliable electrical connection

• Durable insulated housing

• Easy cable installation

Specifications -

• Product Type: FRC IDC Male Header Connector

• Number of Pins: 50 Pins

• Pin Configuration: 25 x 2 Dual Row

• Pitch: 2.54mm

• Mounting Type: Through Hole PCB Mount

• Orientation: Straight Vertical

• Connector Type: IDC Box Header with Lock

• Contact Material: Metal Alloy

• Housing Material: High Strength Insulated Plastic

• Compatible Cable: 50 Pin IDC Ribbon Cable

Applications -

• Ribbon cable interfacing

• Embedded systems

• Microcontroller development boards

• Industrial control equipment

• Communication interfaces

• Test and measurement equipment

• Data acquisition systems

• PCB interconnections

• DIY electronic projects
