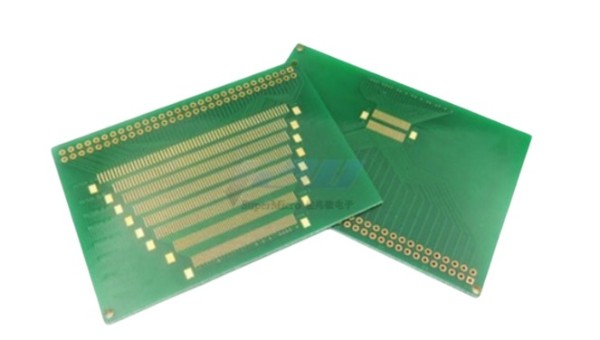

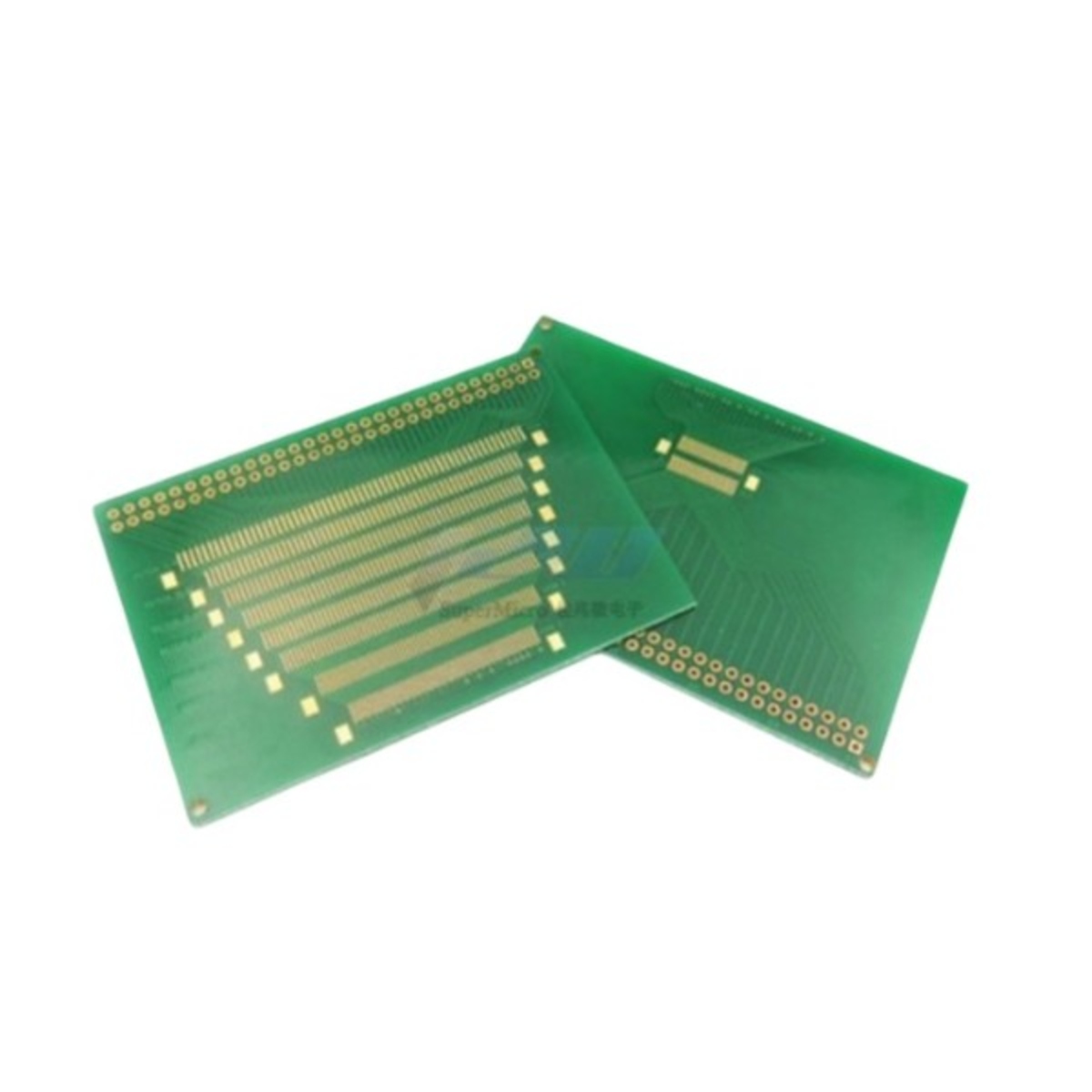

50-Pin LCM TFT LCD to Universal 2.54mm Test Board PCB (LCD Display Breakout Board)

The 50-Pin LCM TFT LCD to Universal 2.54mm Test Board PCB is a practical LCD breakout and testing board designed to interface 50-pin LCM (Liquid Crystal Module) and TFT LCD displays with a standard 2.54mm pin header. It simplifies the evaluation, debugging, and prototyping of LCD modules by converting the fine-pitch display connector into an easy-to-access through-hole interface suitable for breadboards, jumper wires, and prototype PCBs.

Manufactured from high-quality FR4 glass epoxy, this universal test board is ideal for embedded system development, display testing, driver board evaluation, and electronic repair applications.

Key Features -

• Supports 50-pin LCM and TFT LCD display modules

• Converts fine-pitch LCD interface to standard 2.54mm pin spacing

• Universal breakout board design for easy testing and prototyping

• Clearly labeled signal breakout pads for convenient wiring

• High-quality FR4 glass epoxy construction

• Compatible with breadboards and prototype PCBs

• Ideal for LCD module development, testing, and repair

Specifications -

• Product Type: LCD Test and Breakout PCB

• Supported Display Interface: 50-Pin LCM / TFT LCD

• Input Connector: 50-Pin LCD Connector Footprint

• Output Interface: 2.54mm Through-Hole Pin Header

• PCB Type: Universal Test Board

• Mounting Type: Through-Hole Breakout

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: LCD Display Prototyping and Testing

Applications -

• TFT LCD display testing

• LCM display module evaluation

• Embedded system development

• Microcontroller display interfacing

• LCD driver board debugging

• Electronic repair and maintenance

• Educational electronics projects

• DIY display development
