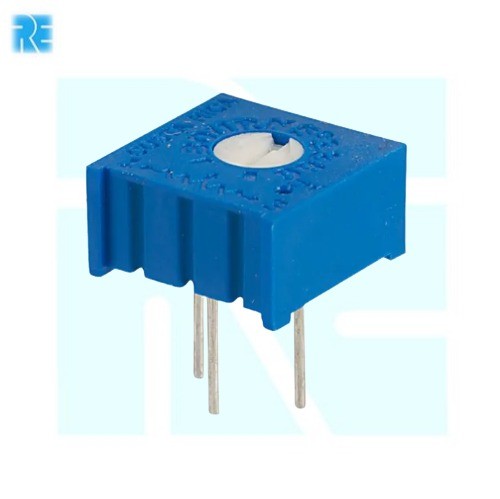

500 Ohm 3386P 1 501LF Single Turn Trimpot (Precision PCB Adjustment)

The 3386P 1 501LF Single Turn Trimpot is an adjustable resistor designed for resistance tuning and calibration in electronic circuits. With a nominal resistance of 500 Ohm, it allows circuit parameters to be adjusted using a screw operated mechanism. Its compact design makes it suitable for printed circuit board mounting in analog electronics, instrumentation, and embedded systems.

Key Features -

• Nominal resistance of 500 Ohm

• Single turn adjustment mechanism

• Compact design for printed circuit board mounting

• Suitable for resistance tuning and circuit calibration

• Useful for analog electronics and instrumentation applications

Specifications -

• Part Number: 3386P 1 501LF

• Component Type: Single Turn Trimpot

• Resistance: 500 Ohm

• Resistance Code: 501

• Adjustment Type: Single turn

• Mounting Type: PCB mounting

• Resistance tolerance, power rating, dimensions, and terminal layout: Refer to the manufacturer's datasheet for the exact part.

Applications -

• Analog circuit calibration

• Sensor circuit adjustment

• Reference voltage tuning

• Instrumentation and measurement equipment

• Electronic test equipment

• Prototype and embedded electronic systems
