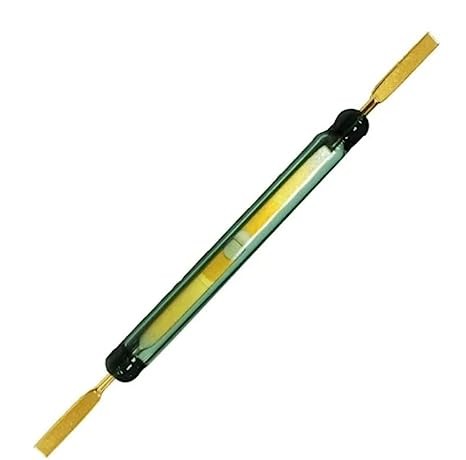

52mm 2 Pin Reed Switch Magnetic Sensor Normally Open SPST Glass Type Magnetic Switch (Reed Switch Sensor)
The 52mm 2 pin reed switch is a magnetic sensor designed to detect the presence of a magnetic field and provide a simple switching output. It is a passive device with no power consumption and is widely used in proximity sensing and position detection systems.
Key Features -
- Magnetic field operated reed switch sensor
- Normally open SPST switching type
- 2 pin simple interface
- Glass sealed construction for durability
- Zero power consumption passive device
- High reliability and long life
Specifications -
- Sensor type - reed switch magnetic sensor
- Contact type - normally open SPST
- Total length - approx 52mm including leads
- Switching voltage - up to approx 100V DC typical
- Switching current - up to approx 0.5A max
- Material - glass encapsulated contacts
- Operating mode - magnetic proximity switching
Applications -
- Door and window open close detection
- Security alarm systems
- Position sensing in mechanical systems
- Speed and rotation detection
- Industrial automation and control
Pinout Configuration -
- Pin 1 - reed contact terminal
- Pin 2 - reed contact terminal
Working Principle -
The reed switch operates using two ferromagnetic contacts sealed inside a glass tube. When a magnetic field is brought near the sensor the contacts attract and close the circuit. When the magnetic field is removed the contacts return to open state. This enables simple and reliable magnetic detection without external power.
