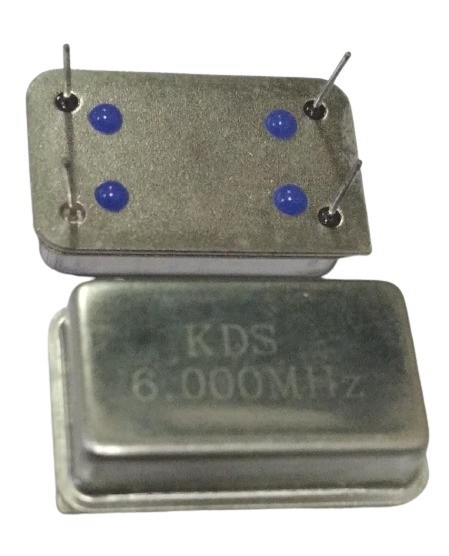

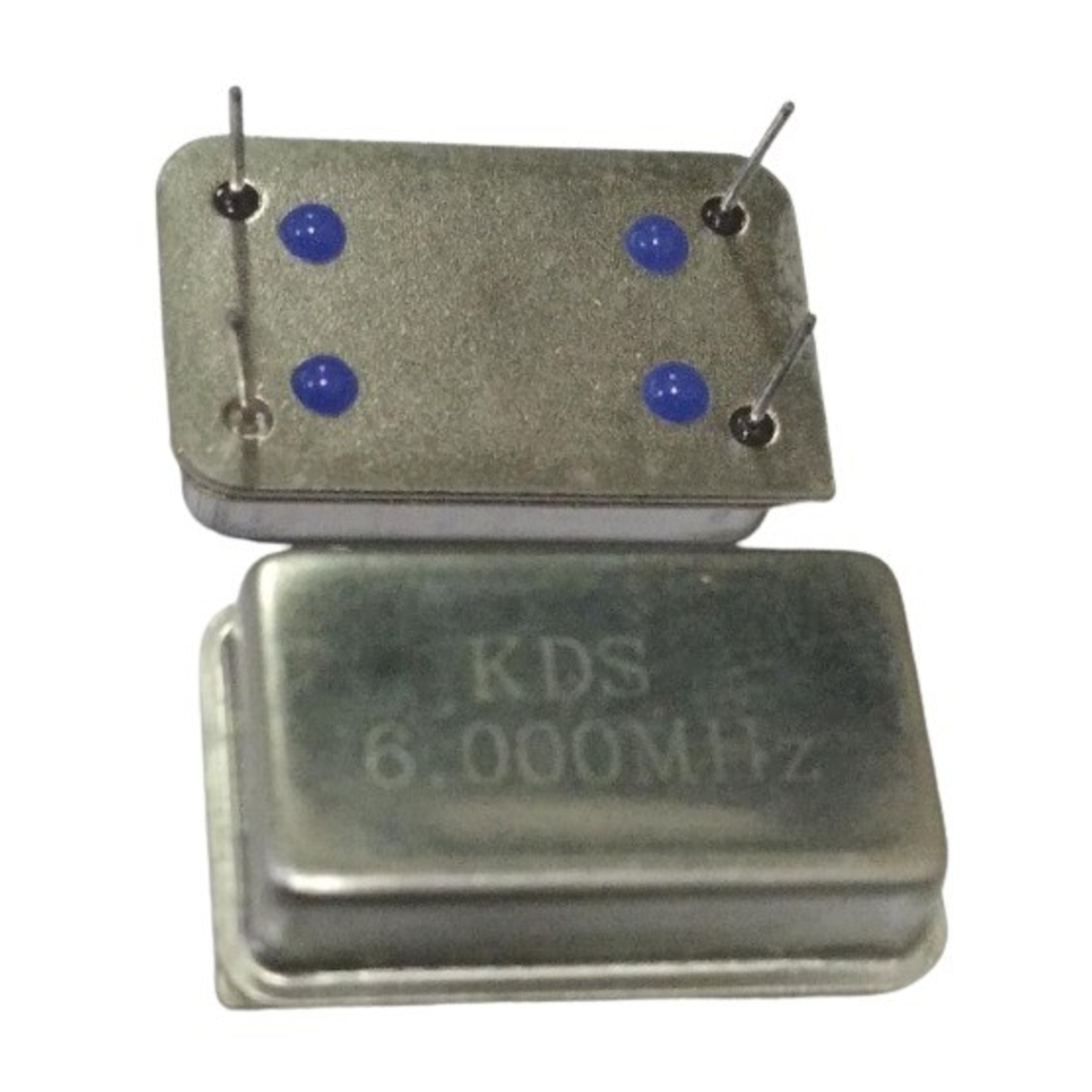

6MHz 4 Pin Crystal Oscillator DIP Package (6MHz Oscillator Module)

The 6MHz 4 Pin Crystal Oscillator is a precision clock generator designed to provide a stable and accurate 6MHz square wave output for microcontrollers, digital circuits, communication equipment, embedded systems, and industrial electronics. Unlike a passive crystal resonator, this oscillator module contains an internal oscillator circuit, delivering a ready-to-use clock signal without requiring external oscillator components.

Its compact 4-pin DIP package makes it easy to integrate into through-hole PCB designs and prototyping applications.

Key Features -

• Stable 6MHz clock output

• Built-in oscillator circuitry

• 4-pin DIP package

• Accurate frequency generation

• Low jitter and high stability

• TTL/CMOS compatible output

• Easy circuit integration

Specifications -

• Product type - Crystal Oscillator Module

• Frequency - 6MHz

• Package type - 4 Pin DIP

• Output type - Square Wave Clock Output

• Supply voltage - 5V DC (Typical)

• Frequency stability - High Stability

• Mounting type - Through Hole Mount

• Technology - Quartz Crystal Oscillator

• Output compatibility - TTL/CMOS Logic

• Application - Clock Signal Generation

Pin Configuration -

• Pin 1 - Enable / NC (Depending on Model)

• Pin 2 - Ground (GND)

• Pin 3 - Output (CLK)

• Pin 4 - VCC Supply

Applications -

• Microcontroller clock sources

• Embedded systems

• Digital electronics

• Communication equipment

• Industrial control systems

• Test and measurement devices

• Development and prototyping projects
