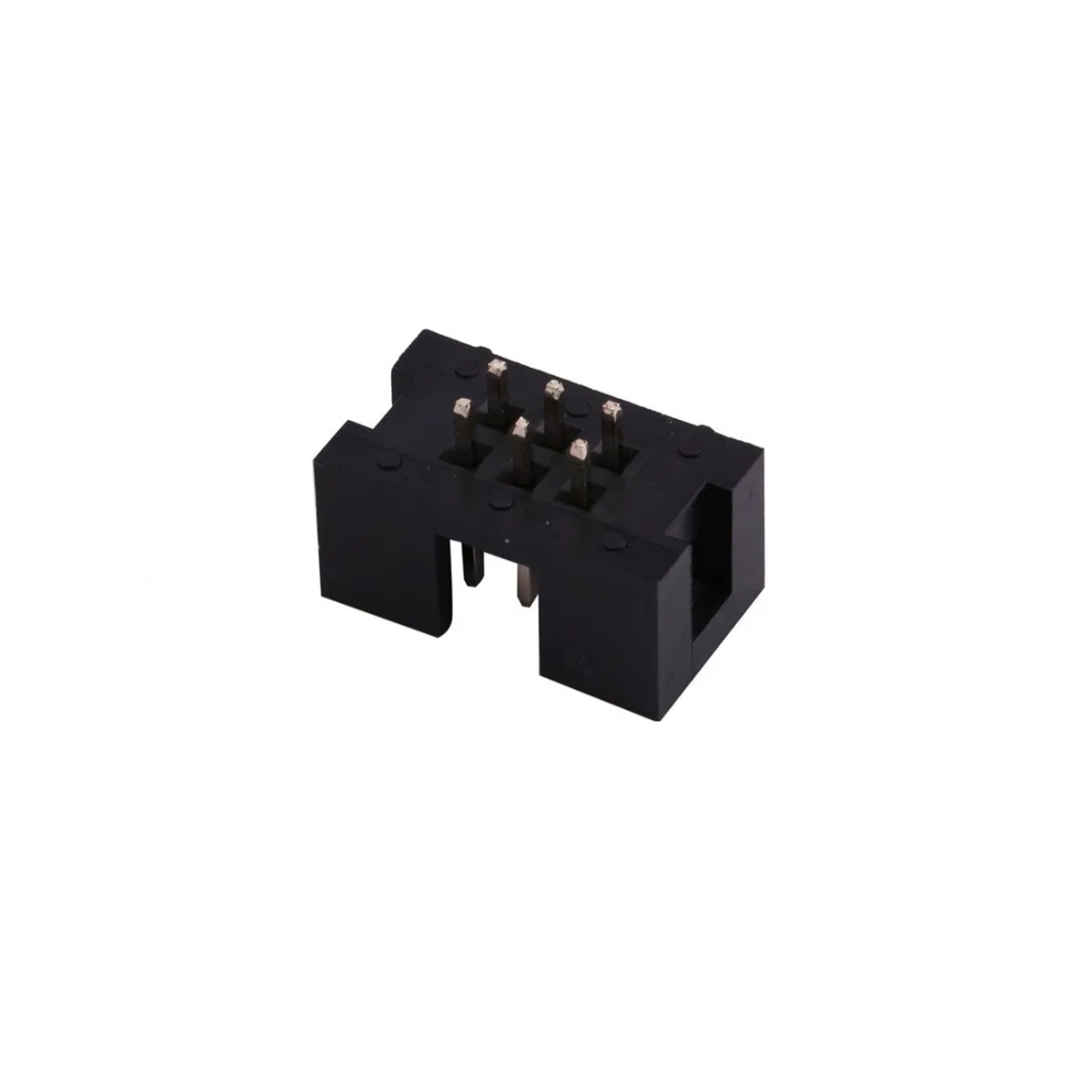

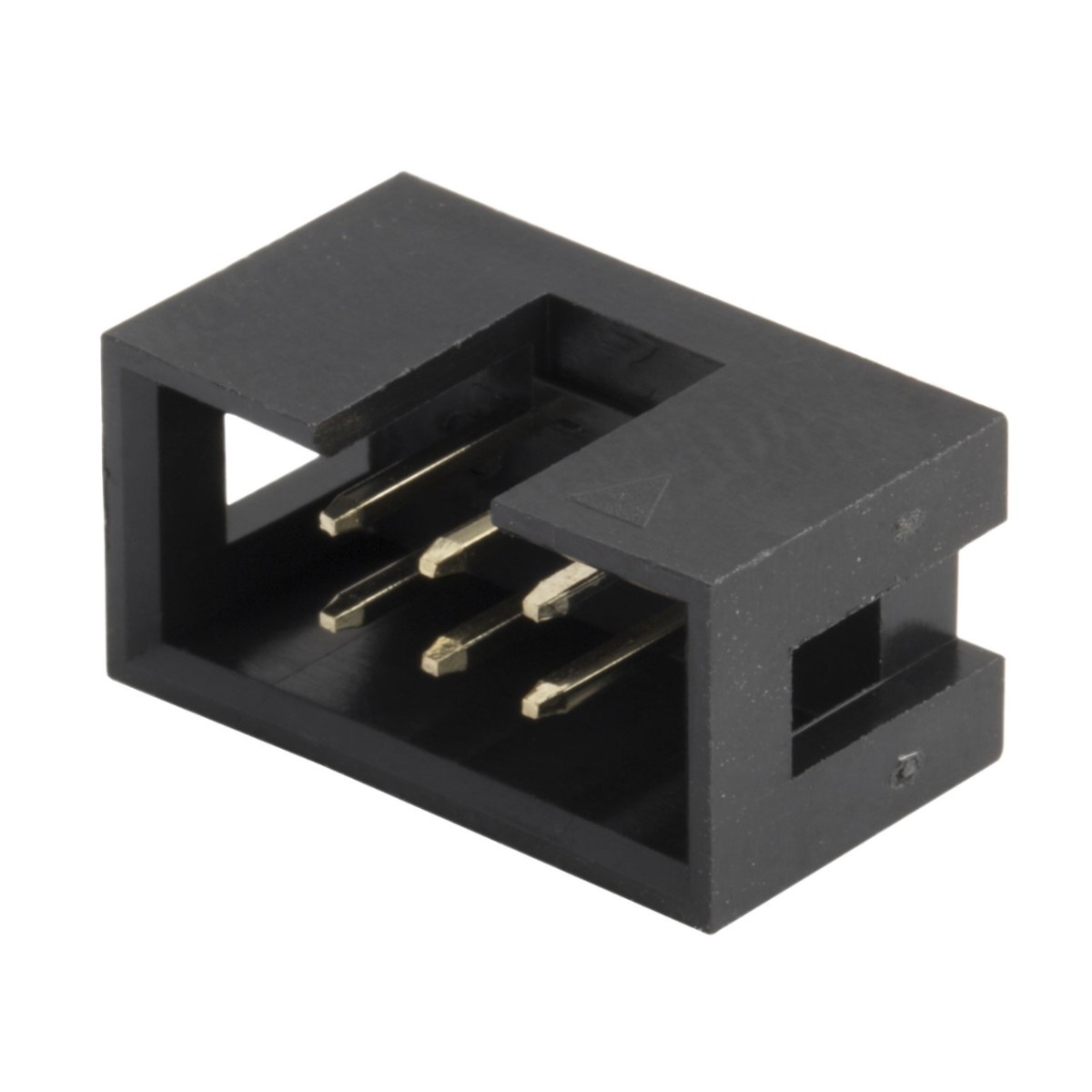

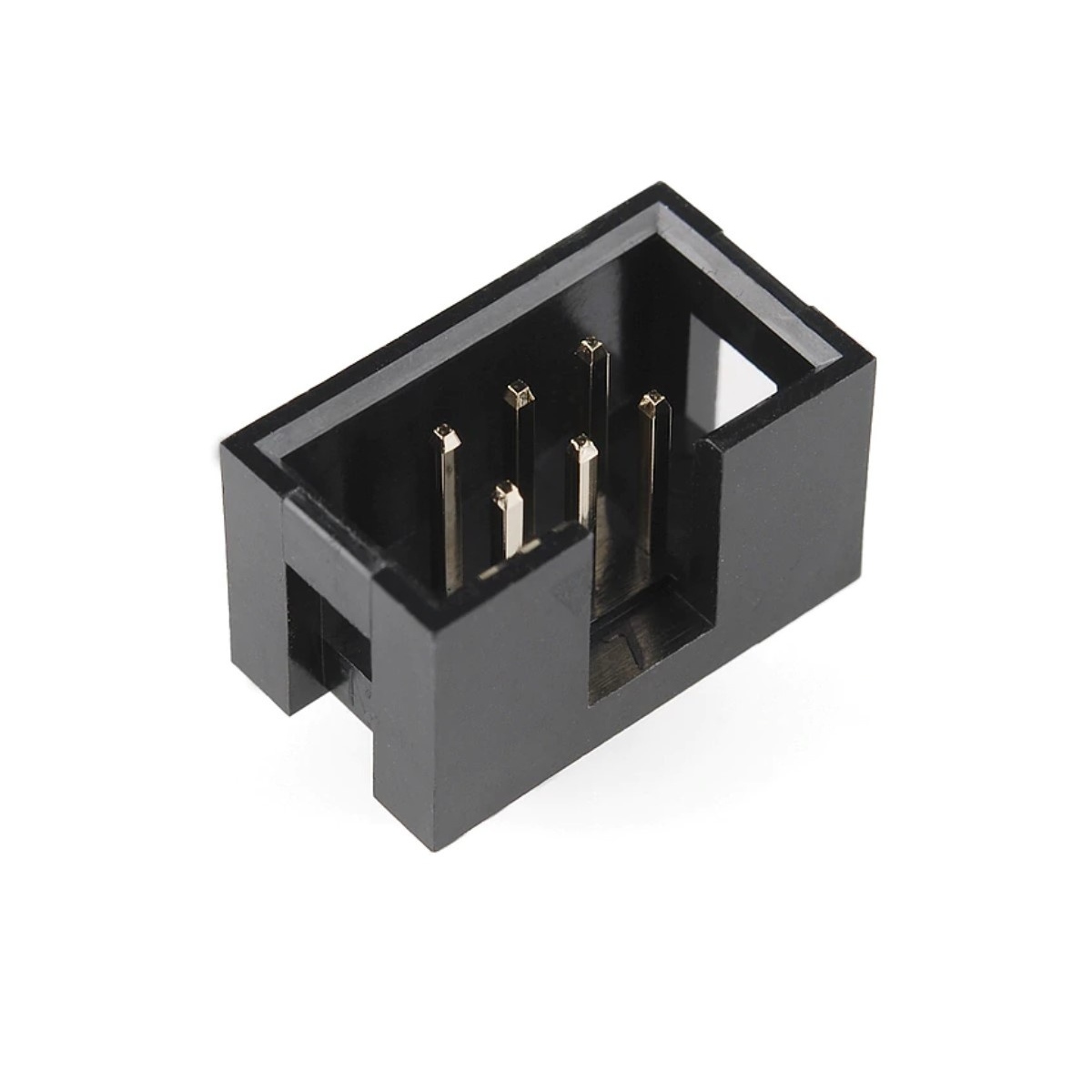

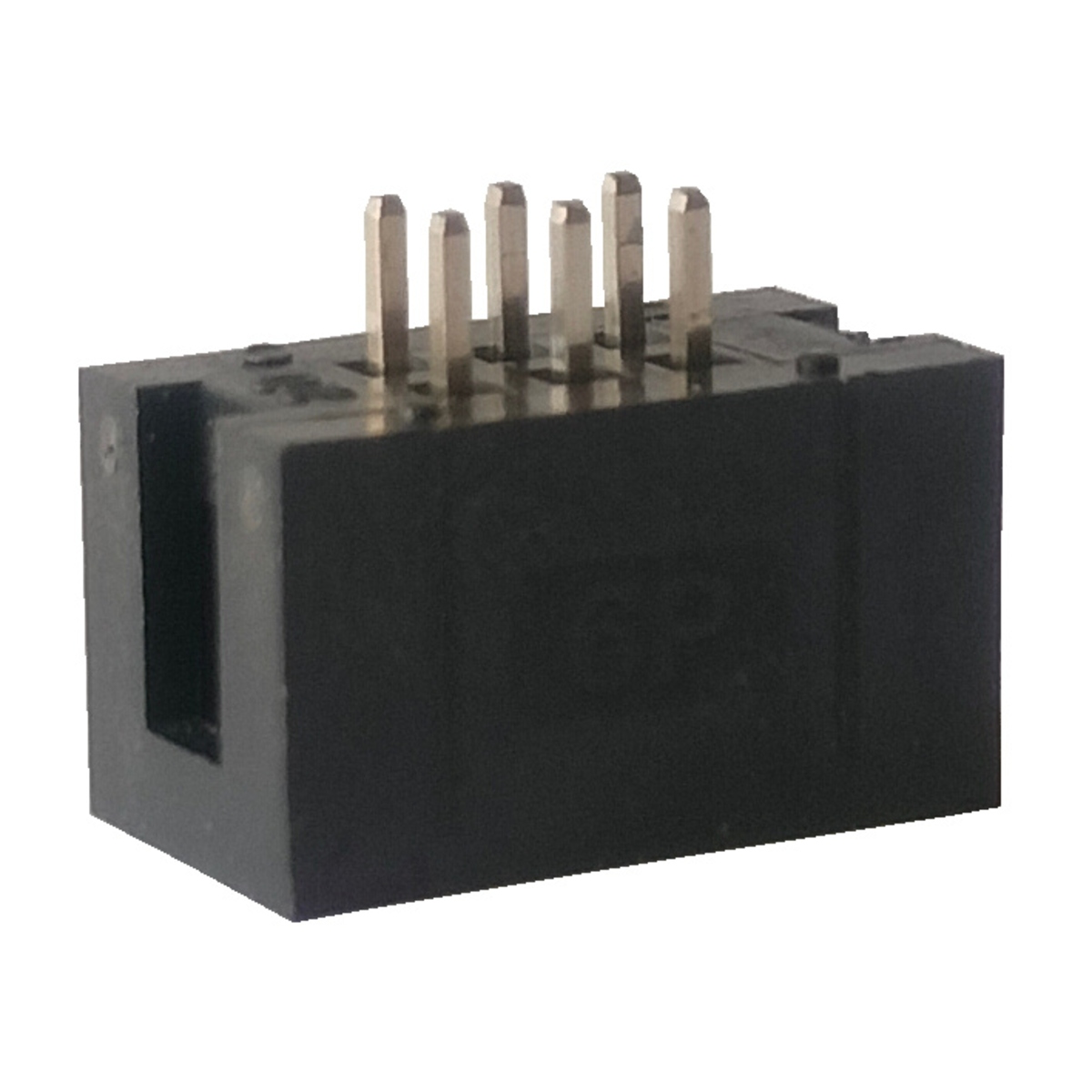

6 Pin FRC/IDC Box Header Straight Male 3x2 Pin 2.54mm (Ribbon Cable Box Header Connector)

The 6 Pin FRC/IDC Box Header Straight Male is a 3x2 dual-row PCB header connector designed for reliable ribbon cable-to-PCB connections in embedded systems, communication equipment, microcontroller development boards, and industrial electronic applications. Featuring a 2.54mm pitch and through-hole mounting, it provides secure mechanical retention and stable signal transmission when used with compatible 6-pin FRC/IDC female ribbon cable connectors.

Its boxed design includes a polarization key to ensure correct connector orientation and prevent incorrect insertion.

Key Features -

• 6-pin 3x2 dual-row connector configuration

• Standard 2.54mm pitch spacing

• Straight male box header design

• Compatible with FRC and IDC ribbon cable connectors

• Polarized housing for correct mating

• Secure through-hole PCB mounting

• Durable insulated housing construction

Specifications -

• Product Type: FRC/IDC Box Header Connector

• Model: 6 Pin Straight Male Header

• Number of Pins: 6

• Pin Configuration: 3x2 Dual Row

• Pitch: 2.54mm

• Orientation: Straight

• Mounting Type: Through-Hole PCB Mount

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interconnections

• Embedded system interfaces

• Microcontroller development boards

• Computer peripheral connections

• Industrial electronic control systems

• Communication equipment

• Electronic prototyping

• PCB-based signal interfaces
