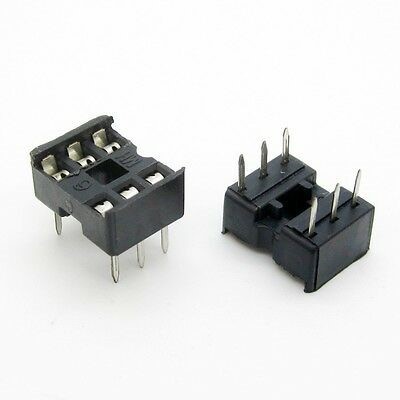

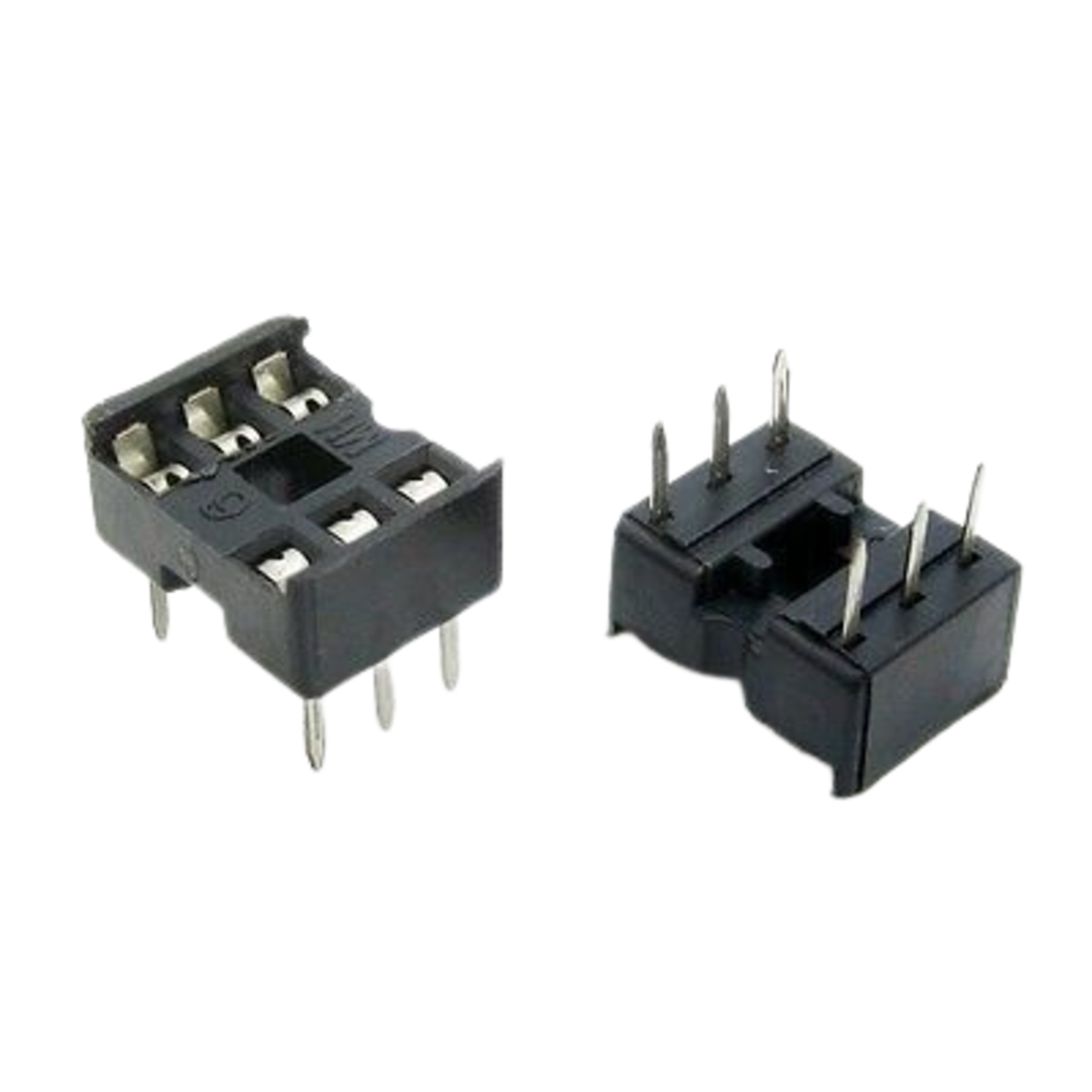

6 Pin IC Socket (DIP IC Socket Through Hole)

The 6 Pin IC Socket is a high-quality through-hole DIP (Dual In-line Package) socket designed for securely mounting 6-pin integrated circuits (ICs) on printed circuit boards. It allows ICs to be inserted and removed easily without soldering directly to the PCB, protecting sensitive components from heat damage during installation and replacement.

Manufactured with durable plastic housing and phosphor bronze contacts, the socket provides reliable electrical connections, low contact resistance, and long service life. It is widely used in embedded systems, development boards, repair work, prototyping, and electronic circuit design.

Key Features -

• Suitable for 6-pin DIP integrated circuits

• Through-hole PCB mounting

• Easy IC insertion and removal

• Protects ICs from soldering heat damage

• Durable plastic housing

• Low contact resistance

• Reliable electrical connection

• Reusable and long service life

• Ideal for prototyping and repairs

Specifications -

• Product Type: IC Socket

• Number of Pins: 6

• Package Compatibility: DIP-6 (Dual In-line Package)

• Mounting Type: Through Hole

• Contact Material: Phosphor Bronze (Model Dependent)

• Housing Material: Heat-Resistant Plastic

• Contact Finish: Tin-Plated (Model Dependent)

• Pitch: 2.54mm (0.1 Inch)

Applications -

• Microcontroller circuits

• Embedded systems

• PCB prototyping

• Electronic repair and maintenance

• Development boards

• DIY electronic projects

• Educational laboratories

• Industrial electronic equipment
