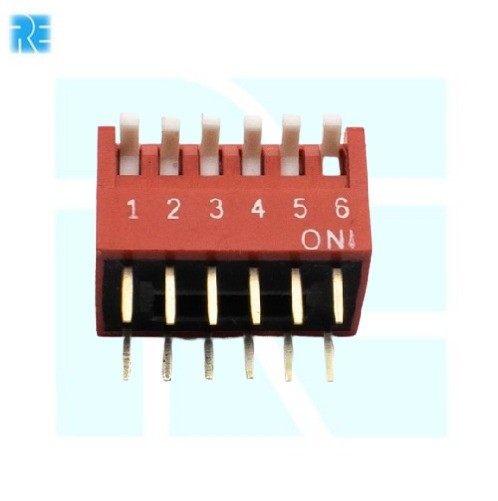

6 Way DIP Piano Type Switch (2.54mm, Right Angle, 12 Pin)

The 6 Way DIP Piano Type Switch is a compact right angle configuration switch designed for PCB based electronic circuits. It provides six individually selectable switch positions with a standard 2.54mm pin pitch and 12 pin through hole construction. The piano style actuators are accessible from the side, making the switch suitable for configuration, address selection, mode setting and control applications.

Key Features -

• 6 way DIP switch

• Piano type actuator design

• Right angle configuration

• 12 pin construction

• 2.54mm pin pitch

• Six individually selectable positions

• Through hole PCB mounting

• Compact configuration switch

• Suitable for manual circuit settings

• Side accessible switch operation

Specifications -

• Product Type: DIP Switch

• Number of Ways: 6

• Number of Switch Positions: 6

• Number of Pins: 12

• Pin Pitch: 2.54mm

• Actuator Type: Piano Type

• Orientation: Right Angle

• Mounting Type: Through Hole

• Switching Function: Individual ON/OFF Positions

• Application: Circuit Configuration and Selection

Applications -

• PCB configuration settings

• Device address selection

• Mode selection circuits

• Microcontroller systems

• Industrial control boards

• Communication equipment

• Embedded systems

• Electronic instruments

• Development boards

• Configuration and option selection
