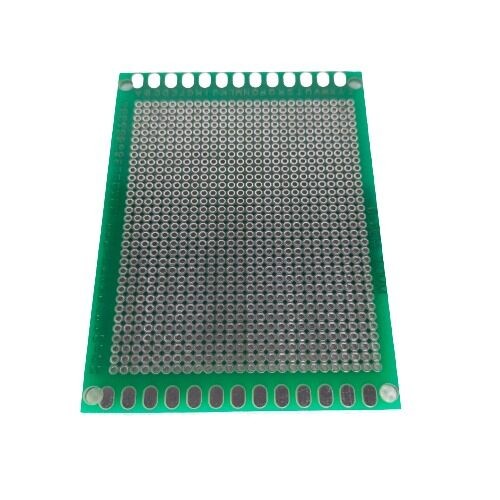

60 x 80mm Double-Sided 2mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 60 x 80mm Double-Sided General Purpose Dotted PCB is a versatile prototype perf board designed for building and testing custom electronic circuits using through-hole components. Featuring a 2mm hole pitch, it is suitable for compact circuit layouts where closer component spacing is required. The double-sided copper construction provides enhanced routing flexibility and reliable solder joints, making it ideal for prototyping, educational projects, electronic repairs, and DIY circuit development.

Manufactured from high-quality FR4 glass epoxy, this PCB offers excellent mechanical strength, electrical insulation, and long-lasting durability for both hobbyists and professionals.

Key Features -

• Compact 60 x 80mm prototype PCB

• Double-sided copper construction for flexible circuit routing

• Standard 2mm hole pitch for compact component placement

• Dotted copper pad layout for custom circuit design

• High-quality FR4 glass epoxy construction

• Easy to solder, modify, and repair

• Suitable for prototyping, testing, and educational applications

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 60 x 80mm

• PCB Type: Double-Sided

• Hole Pitch: 2mm

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Compact embedded system development

• Educational and laboratory experiments

• Sensor and interface circuit development

• DIY electronics projects

• Electronic repair and modification

• Industrial control circuit testing

• Research and development
