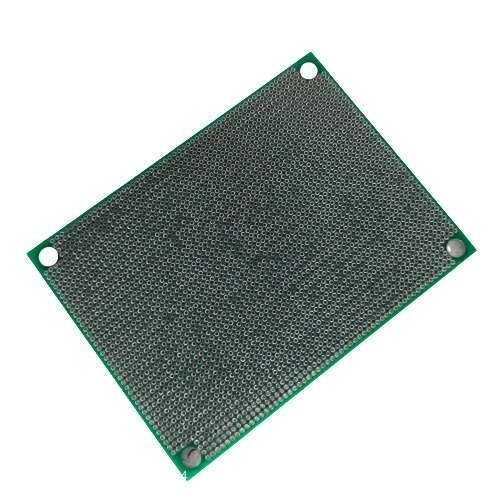

60 x 80mm Double-Sided 1.27mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 60 x 80mm Double-Sided 1.27mm Pitch General Purpose Dotted PCB is a compact prototype perf board designed for assembling, testing, and developing electronic circuits using through-hole and fine-pitch electronic components. Featuring 1.27mm (0.05 inch) hole spacing and copper pads on both sides, it provides a high-density layout for compact circuit designs while offering enhanced routing flexibility and reliable electrical connections. It is ideal for embedded systems, precision electronics, educational projects, and DIY circuit development.

Manufactured from high-quality PCB material, this board is suitable for engineers, students, technicians, and electronics enthusiasts who require a compact prototype platform with finer pad spacing.

Key Features -

• Compact 60 x 80mm prototype PCB

• Double-sided copper construction

• Standard 1.27mm pitch hole spacing

• General-purpose dotted copper pad layout

• Suitable for compact and high-density circuit designs

• Compatible with through-hole and fine-pitch electronic components

• Improved routing flexibility with copper pads on both sides

• Easy to solder, modify, and repair

• Ideal for prototyping, testing, and educational projects

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 60 x 80mm

• PCB Type: Double-Sided

• Pitch: 1.27mm

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole and Fine-Pitch Components

• Copper Layer: Double-Sided

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Compact electronic circuit prototyping

• Embedded system development

• Fine-pitch component evaluation

• Educational and laboratory experiments

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects

• Research and development
