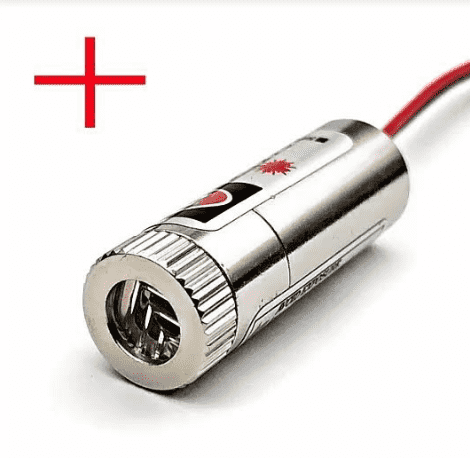

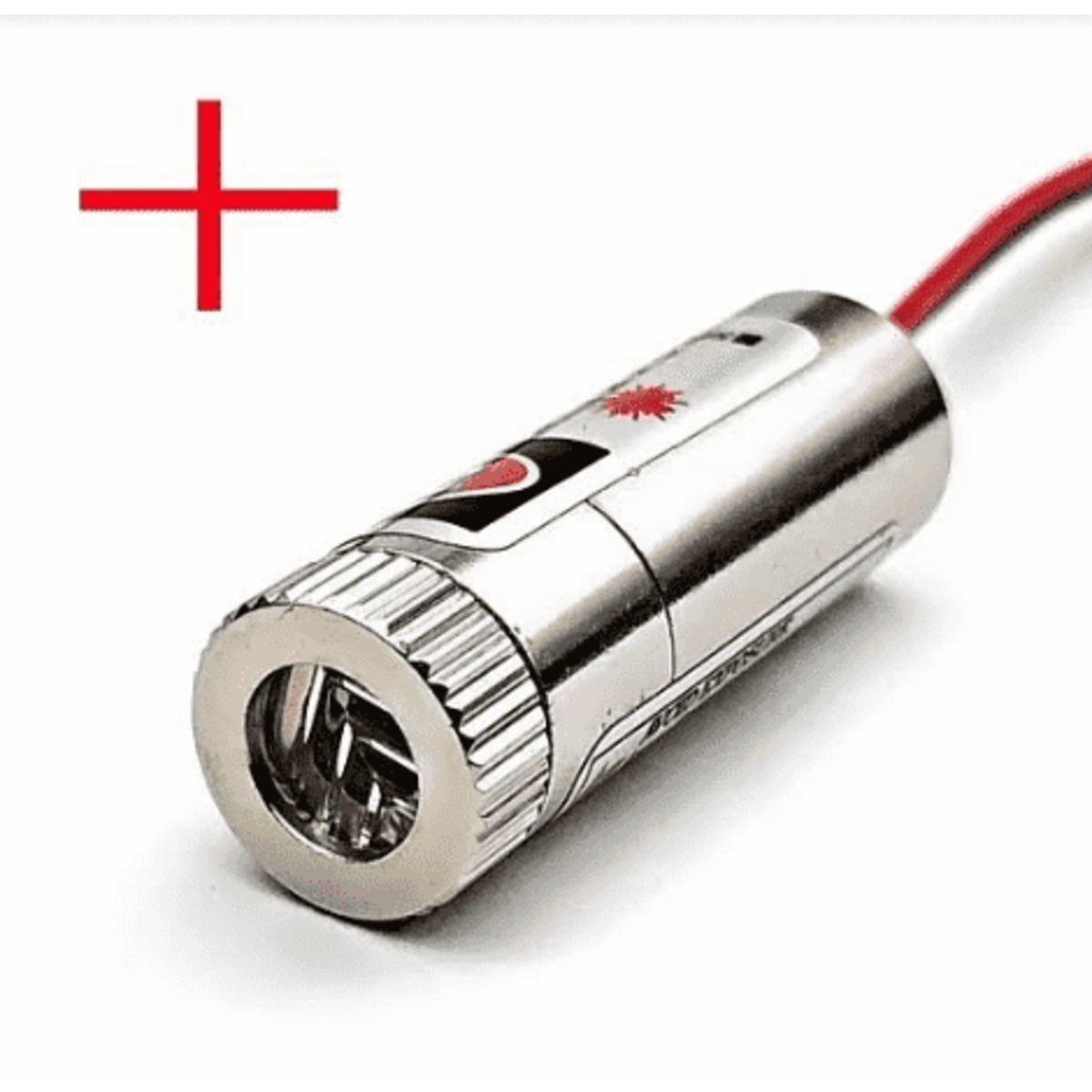

650nm 5mW Focusable Red Crossline Laser Module 3V (650nm Crossline Laser Module)
The 650nm 5mW Focusable Red Crossline Laser Module 3V is a compact semiconductor laser device designed to project a precise cross shaped laser beam for alignment and positioning applications. It operates at a wavelength of 650nm, producing a bright visible red beam, and uses an integrated optical lens system to convert a laser point into a crossline pattern. The focusable head allows adjustment of beam sharpness and projection clarity for different working distances.
This laser module is widely used in India for industrial electronics, alignment systems, scanning applications, and embedded systems. It is valued for its clear crossline projection, low voltage operation, and reliable performance in tasks such as machine alignment, marking, and optical detection.
Key Features
- Crossline Laser Projection: Generates precise cross pattern
- 650nm Red Laser Output: Bright visible beam
- 5mW Output Power: Stable and controlled emission
- Focusable Lens Head: Adjustable beam sharpness
- Low Voltage Operation: Works on 3V supply
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser crossline module
- Wavelength: 650nm red spectrum
- Output Power: Up to 5mW
- Operating Voltage: 3V to 6V range
- Beam Type: Crossline projection
- Focus Adjustment: Manual adjustable lens
- Output Mode: Continuous wave
- Mounting Type: Module housing mount
- Applications: Laser alignment positioning systems machine vision industrial electronics embedded systems
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Optical output aperture for crossline projection
