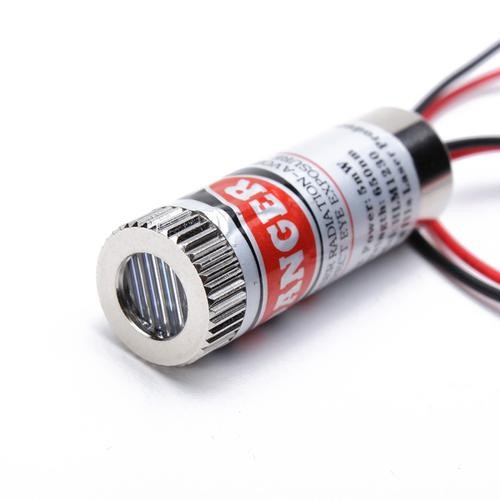

650nm 5mW Focusable Red Line Laser Module 3V (650nm Red Line Laser Module)
The 650nm 5mW Focusable Red Line Laser Module 3V is a compact semiconductor laser device designed to project a straight red laser line for precision alignment and positioning applications. It operates at a wavelength of 650nm, producing a bright visible beam, and uses an integrated optical lens to convert the laser dot into a uniform line pattern. The focusable head allows adjustment of beam sharpness and line thickness based on working distance.
This laser module is widely used in India for industrial electronics, machine alignment systems, scanning applications, and embedded systems. It is valued for its low voltage operation, consistent line projection, and reliable performance in applications such as measurement, marking, and optical sensing.
Key Features
- 650nm Red Laser Output: Bright visible line projection
- 5mW Output Power: Stable and controlled emission
- Focusable Lens: Adjustable line clarity and thickness
- Line Beam Projection: Converts dot into straight line
- Low Voltage Operation: Works on 3V supply
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser line module
- Wavelength: 650nm
- Output Power: Up to 5mW
- Operating Voltage: 3V DC
- Operating Current: Low current operation
- Beam Type: Line beam projection
- Line Width: Approx 1.5mm to 2mm at 1m distance
- Line Length: Up to approx 2m at 1m distance
- Mounting Type: Module housing or PCB integration
- Applications: Laser alignment positioning systems machine vision industrial electronics embedded systems
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Optical output aperture for laser line emission
