650nm 6mm Mini Laser Dot Diode Module 3V 2.5mW (650nm Laser Diode Module)
The 650nm 6mm Mini Laser Dot Diode Module 3V 2.5mW is a compact semiconductor laser device designed to generate a focused red laser beam for precision applications. It operates at a wavelength of 650nm, producing a visible red dot with stable low power output around 2.5mW. The small 6mm diameter housing integrates a laser diode and collimating lens, ensuring consistent beam quality and reliable performance in compact electronic systems.
This laser diode module is widely used in India for embedded systems, alignment tools, optical sensing, and industrial electronics. It is valued for its low power consumption, compact size, and efficient performance in applications such as positioning, targeting, and DIY electronics projects.
Key Features
- 650nm Red Laser Output: Visible and stable beam
- 2.5mW Output Power: Low power safe operation
- Compact 6mm Design: Easy integration into small devices
- Low Voltage Operation: Works on 3V supply
- Focused Dot Beam: Suitable for alignment and indication
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser diode module
- Wavelength: 650nm
- Output Power: Approx 2.5mW to 3mW
- Operating Voltage: 3V DC
- Operating Current: Low current operation

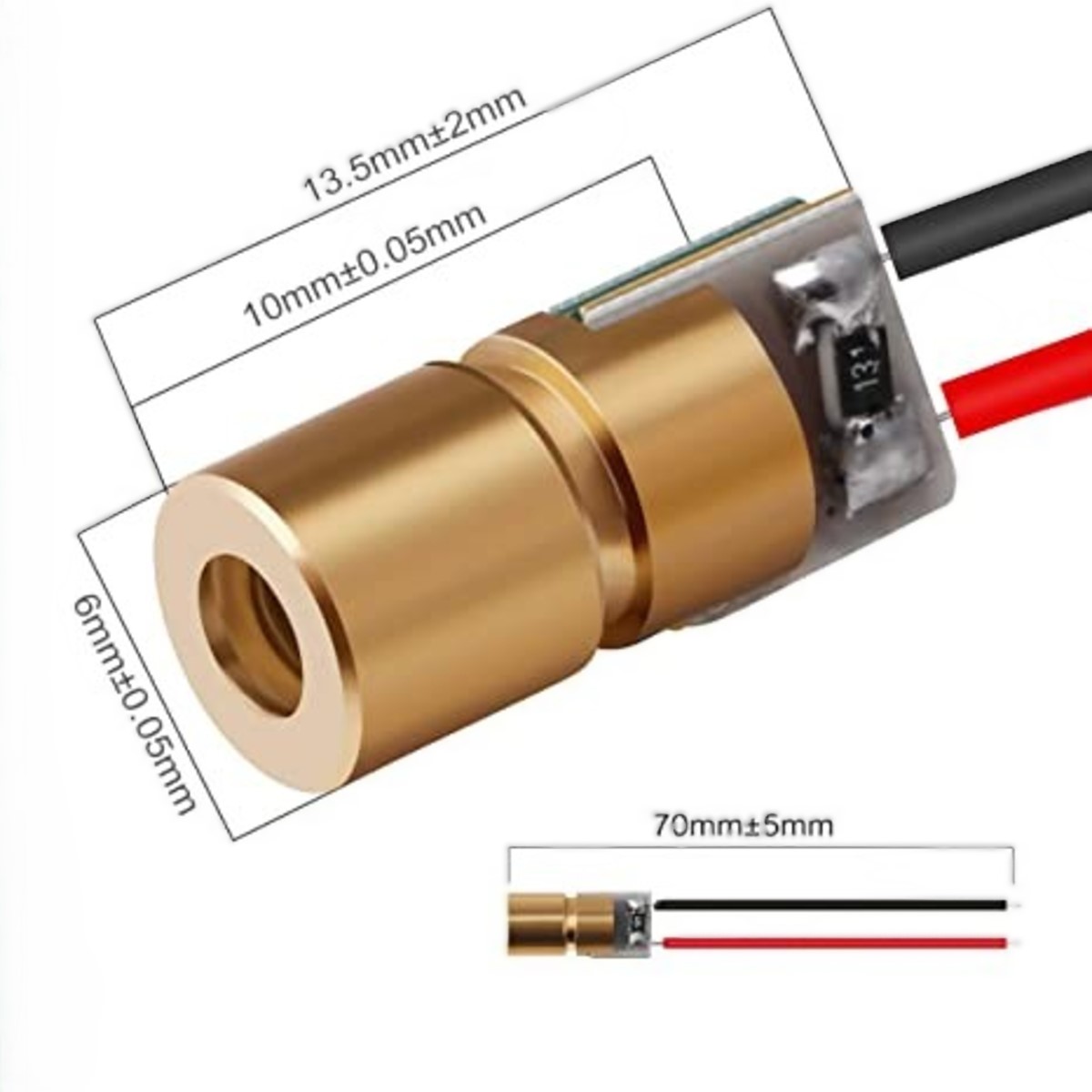

- Diameter: Approx 6mm
- Beam Type: Focused dot beam
- Output Mode: Continuous wave
- Mounting Type: PCB mount or module integration
- Applications: Laser alignment positioning systems optical sensing embedded systems industrial electronics
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Optical output aperture for laser emission
