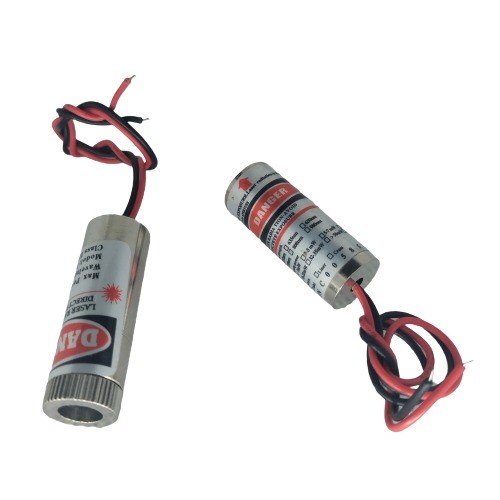

650nm Red Dot Laser Module 5mW 3V (650nm Red Laser Diode Module)
The 650nm Red Dot Laser Module 5mW 3V is a compact semiconductor laser device designed to generate a focused visible red laser beam for precision applications. It operates at a wavelength of 650nm with an output power of 5mW, producing a bright and stable laser dot. The module integrates a laser diode, lens, and basic driver components, enabling easy use with low voltage power sources.
This red laser module is widely used in India for embedded systems, alignment tools, optical sensing, and industrial electronics. It is valued for its compact size, low power consumption, and reliable performance in applications such as positioning, targeting, and DIY electronics projects.
Key Features
- 650nm Red Laser Output: Bright visible laser dot
- 5mW Output Power: Stable and controlled emission
- Low Voltage Operation: Works on 3V supply
- Compact Module Design: Easy integration into circuits
- Focused Beam Output: Suitable for alignment and detection
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser diode module
- Wavelength: 650nm
- Output Power: 5mW
- Operating Voltage: 3V to 5V
- Operating Current: Typically below 40mA
- Beam Type: Focused dot beam
- Housing Type: Metal or copper casing
- Mounting Type: PCB mount or module integration
- Applications: Laser alignment positioning systems optical sensing embedded systems industrial electronics
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Optical output aperture for laser emission
