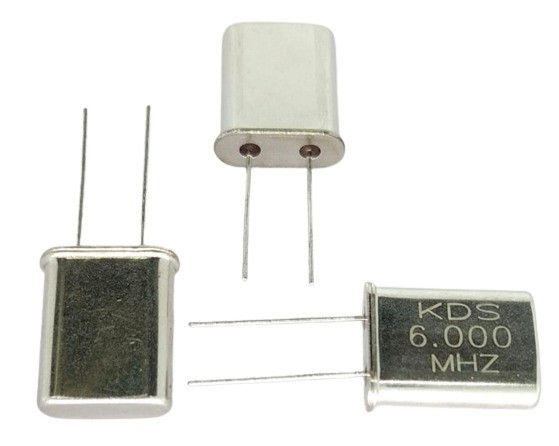

6MHz Crystal Oscillator Full Size HC49U Through Hole Quartz Frequency Crystal for Clock and Timing Circuits (6MHz Crystal Resonator)

The 6MHz Crystal Full Size HC49U Quartz Crystal Resonator is designed for accurate frequency generation, stable clock timing, and oscillator applications in embedded systems, communication equipment, industrial electronics, and microcontroller circuits. This through hole quartz crystal provides reliable oscillation performance with low frequency drift, making it ideal for timing control and signal synchronization applications.

Key Features -

• 6MHz precision quartz crystal frequency

• Full size HC49U metal crystal package

• Stable oscillator and timing performance

• Through hole PCB mounting design

• Low frequency drift characteristics

• Reliable long term frequency stability

• Suitable for clock generation circuits

• Compact and durable crystal construction

Specifications -

• Product type - Quartz Crystal Resonator

• Crystal type - Frequency control quartz crystal

• Frequency - 6MHz

• Package type - HC49U full size through hole package

• Mounting type - Through hole mounting

• Oscillation mode - Fundamental mode

• Load capacitance - Approx 18pF to 32pF

• Frequency stability - Approx standard crystal stability

• Operating temperature - Approx minus 20 degree C to plus 70 degree C

• Pin configuration - 2 pin crystal configuration

• Material - Quartz crystal with metal enclosure

• Additional features - Stable resonance, low drift response, reliable oscillation performance, durable metal housing

Applications -

• Microcontroller clock generation

• Embedded system timing circuits

• RF communication equipment

• Oscillator and frequency reference circuits

• Industrial automation electronics

• Signal processing applications

• DIY electronic projects

• Digital timing control systems
