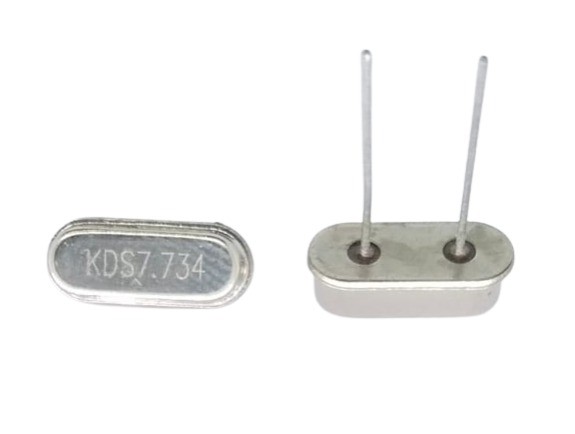

7.734MHz Crystal Cut Size HC49S Through Hole Quartz Frequency Crystal (7.734MHz Crystal Resonator)

The 7.734MHz Crystal Cut Size HC49S Quartz Crystal Resonator is designed for stable frequency generation and timing applications in communication systems, embedded electronics, oscillator circuits, and frequency control applications. It provides accurate oscillation performance and reliable clock signal generation.

Key Features -

• 7.734MHz precision crystal frequency

• HC49S compact crystal package

• Stable oscillator performance

• Through hole mounting design

• Low frequency drift characteristics

• Reliable long term operation

Specifications -

• Product type - Quartz Crystal Resonator

• Crystal type - Frequency control quartz crystal

• Frequency - 7.734MHz

• Package type - HC49S cut size through hole package

• Mounting type - Through hole mounting

• Oscillation mode - Fundamental mode

• Load capacitance - Approx 18pF to 32pF

• Frequency stability - Approx standard crystal stability

• Operating temperature - Approx minus 20 degree C to plus 70 degree C

• Pin configuration - 2 pin crystal configuration

• Material - Quartz crystal with metal enclosure

• Additional features - Stable resonance, compact size, reliable oscillation performance

Applications -

• Communication systems

• Oscillator circuits

• Embedded electronic systems

• Timing applications

• Frequency control circuits
