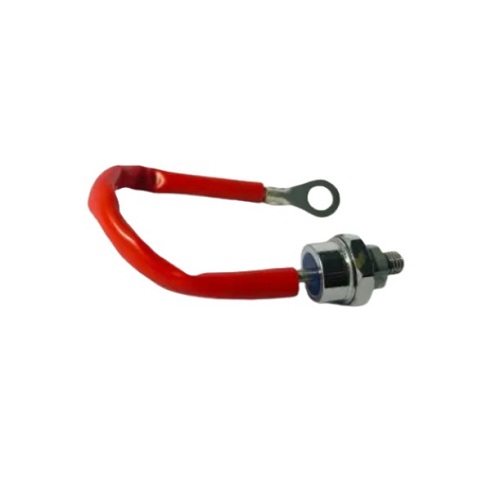

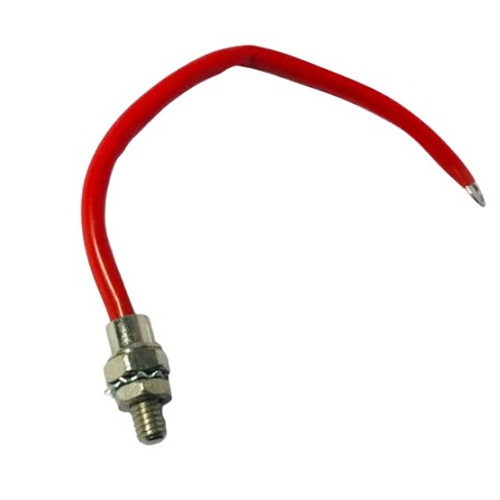

70HM160 Metal Power Diode – 1600V, 70A, M16 Stud Mount (Stud Cathode)

The 70HM160 is a high-power stud-mounted rectifier diode designed for industrial-grade power conversion and rectification applications. With a 1600V reverse voltage rating and 70A forward current capability, it is suitable for high-current DC power supplies, battery chargers, welding equipment, motor control systems, and industrial rectifier assemblies. The M16 stud-mount package with stud cathode polarity provides robust mechanical mounting and efficient thermal transfer to a heatsink for reliable operation under heavy loads.

Key Features -

• High-current standard rectifier diode

• 1600V peak reverse voltage rating

• 70A average forward current capability

• M16 stud-mount package for secure installation

• Stud Cathode polarity configuration

• Metal body construction for excellent heat dissipation

• Rugged design for industrial environments

• Suitable for high-power rectification circuits

Specifications -

• Product Type - Power Rectifier Diode

• Part Number - 70HM160

• Diode Type - Standard Rectifier

• Reverse Voltage (VRRM) - 1600V

• Forward Current (IF) - 70A

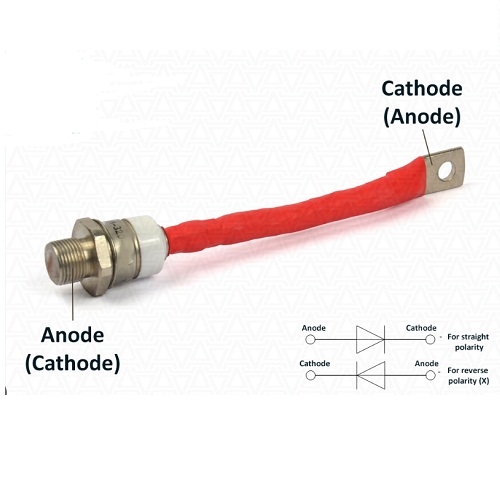

• Polarity - Stud Cathode

• Mounting Type - Stud Mount

• Stud Size - M16

• Package Style - Metal Stud Package

• Body Material - Metal

Applications -

• Industrial rectifier units

• Battery charging systems

• High-current DC power supplies

• Welding machines

• Motor drives and controllers

• UPS and inverter systems

• Renewable energy power conversion systems

• Electroplating equipment

• Industrial automation equipment
