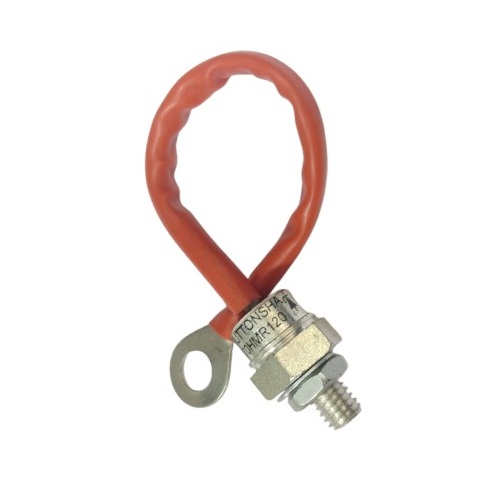

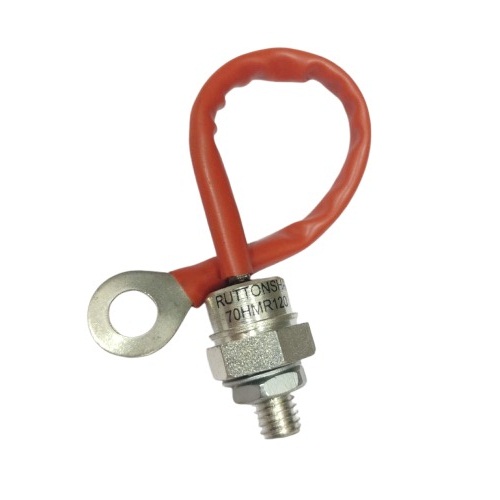

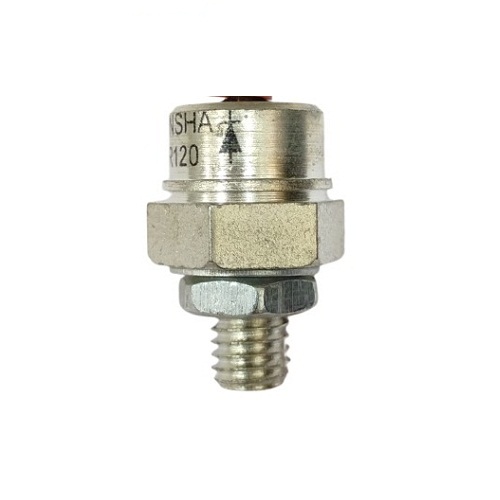

70HMR120 Metal Power Diode – 1200V, 70A, M16 Stud Mount (Stud Anode)

The 70HMR120 is a high-current stud-mounted standard rectifier diode designed for industrial power conversion and high-power rectification applications. Rated for 1200V reverse voltage and 70A forward current, it delivers reliable performance in demanding electrical systems. Featuring an M16 stud-mount package with Stud Anode polarity, the diode provides secure mechanical installation and excellent heat dissipation when mounted to a suitable heatsink. It is ideal for use in industrial rectifiers, battery chargers, welding machines, motor drives, UPS systems, and high-current DC power supplies.

Key Features -

• High-current standard rectifier diode

• 1200V peak reverse voltage rating

• 70A average forward current capability

• M16 stud-mount package for secure installation

• Stud Anode polarity configuration

• Metal body for efficient heat dissipation

• Rugged construction for industrial applications

• Reliable performance in high-power rectification circuits

Specifications -

• Product Type - Power Rectifier Diode

• Part Number - 70HMR120

• Diode Type - Standard Rectifier

• Reverse Voltage (VRRM) - 1200V

• Forward Current (IF) - 70A

• Polarity - Stud Anode

• Mounting Type - Stud Mount

• Stud Size - M16

• Package Style - Metal Stud Package

• Body Material - Metal

Applications -

• Industrial rectifier assemblies

• High-current DC power supplies

• Battery charging equipment

• Welding machines

• Motor drives and controllers

• UPS and inverter systems

• Renewable energy power conversion

• Electroplating equipment

• Industrial automation systems
