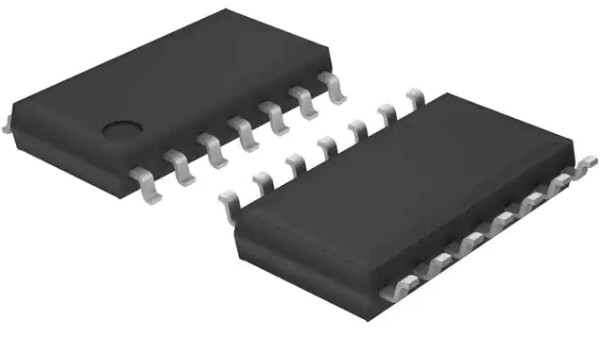

7406 Hex Inverter Buffer Driver IC SMD SOIC(14) (7406 SOIC 14 IC)
The 7406 Hex Inverter Buffer Driver IC SMD SOIC(14) is a high speed TTL logic IC that contains six independent inverter buffers with open collector outputs. It is designed for signal inversion, level shifting, and driving higher voltage loads such as relays and LEDs. The SOIC(14) SMD package ensures compact size, strong PCB mounting, and reliable performance in modern electronic circuits.
The 7406 SMD IC is widely used in India for embedded systems, driver circuits, signal conditioning, and industrial electronics. It is valued for its high voltage open collector outputs, efficient switching, and compatibility with various logic and load interfaces.
Key Features
- Hex Inverter Buffers: Six independent inverter drivers in one IC.
- Open Collector Outputs: Supports higher voltage interfacing.
- High Voltage Capability: Ideal for driving external loads.
- High Speed TTL Logic: Fast switching performance.
- Level Shifting Support: Interface between different voltage levels.
- SMD SOIC14 Package: Compact and reliable surface mount design.
Specifications
- IC Type: Hex Inverter Buffer Driver IC
- Logic Family: Standard TTL Logic
- Number of Channels: 6
- Output Type: Open Collector
- Operating Voltage: Standard TTL supply voltage
- Output Voltage Capability: Higher voltage load driving support
- Package Type: SOIC 14 SMD
- Mounting Type: Surface Mount
- Applications: Signal inversion driver circuits relay driving LED driving embedded systems industrial electronics
Pinout Configuration (SOIC 14 Layout)
- Input pins for six inverter channels
- Output pins with open collector configuration
- VCC supply pin
- GND ground pin
