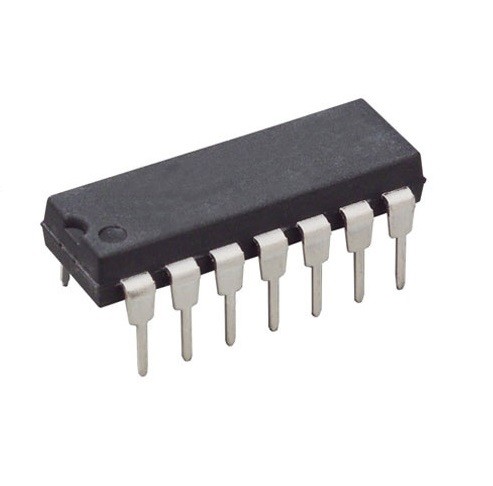

74F04 DIP IC Hex Inverter (74F04 IC)
The 74F04 is a hex inverter integrated circuit designed for high speed digital logic applications. It contains six independent NOT gates that invert the input signal to produce the opposite logic level at the output.
This IC belongs to the FAST TTL logic family which provides faster switching speeds compared to standard TTL devices. It is commonly used in digital logic circuits signal processing systems and control circuits where reliable signal inversion is required. The DIP package allows easy use in breadboard prototyping and PCB based digital electronics designs.
Key Features
- Hex inverter integrated circuit
- Six independent NOT gates
- High speed FAST TTL logic family
- Reliable digital signal inversion
- Suitable for digital control and logic circuits
- Compatible with TTL logic levels
- DIP package suitable for prototyping and PCB mounting
Specifications
- IC Model = 74F04
- Logic Type = Hex inverter
- Number Of Gates = 6
- Logic Family = FAST TTL
- Package Type = DIP
- Operating Voltage = 4.5V to 5.5V
- Propagation Delay = High speed operation
- Application = Digital logic circuits signal inversion and control systems
Interfaces
- A1 = Input inverter 1
- Y1 = Output inverter 1
- A2 = Input inverter 2
- Y2 = Output inverter 2
- A3 = Input inverter 3
- Y3 = Output inverter 3
- A4 = Input inverter 4
- Y4 = Output inverter 4
- A5 = Input inverter 5
- Y5 = Output inverter 5
- A6 = Input inverter 6
- Y6 = Output inverter 6
- VCC = Power supply
- GND = Ground
