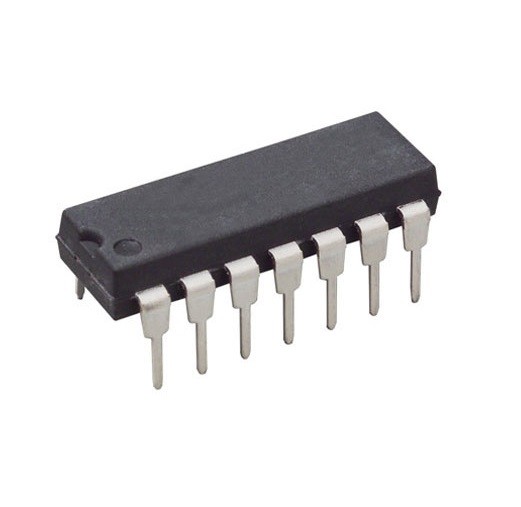

74F14 DIP IC Hex Inverter Schmitt Trigger (74F14 IC)

The 74F14 is a hex inverter integrated circuit with Schmitt trigger inputs designed for high speed digital signal processing. It contains six independent inverter gates with Schmitt trigger input stages that provide hysteresis for improved noise immunity and clean signal transitions.

This IC belongs to the FAST TTL logic family and is commonly used in waveform shaping signal conditioning oscillator circuits and digital logic applications where stable switching is required. The DIP package makes it suitable for breadboard prototyping and PCB based digital electronics designs.

Key Features

• Hex inverter with Schmitt trigger inputs
• Six independent inverter gates
• High speed FAST TTL logic family
• Improved noise immunity with input hysteresis
• Suitable for signal conditioning and waveform shaping
• Reliable switching with slow or noisy input signals
• DIP package suitable for prototyping and PCB mounting

Specifications

• IC Model = 74F14
• Logic Type = Hex inverter with Schmitt trigger
• Number Of Gates = 6
• Logic Family = FAST TTL
• Package Type = DIP
• Operating Voltage = 4.5V to 5.5V
• Input Type = Schmitt trigger input
• Application = Signal conditioning oscillators and digital logic circuits

Interfaces

• A1 = Input inverter 1
• Y1 = Output inverter 1
• A2 = Input inverter 2
• Y2 = Output inverter 2
• A3 = Input inverter 3
• Y3 = Output inverter 3
• A4 = Input inverter 4
• Y4 = Output inverter 4
• A5 = Input inverter 5
• Y5 = Output inverter 5
• A6 = Input inverter 6
• Y6 = Output inverter 6
• VCC = Power supply
• GND = Ground
