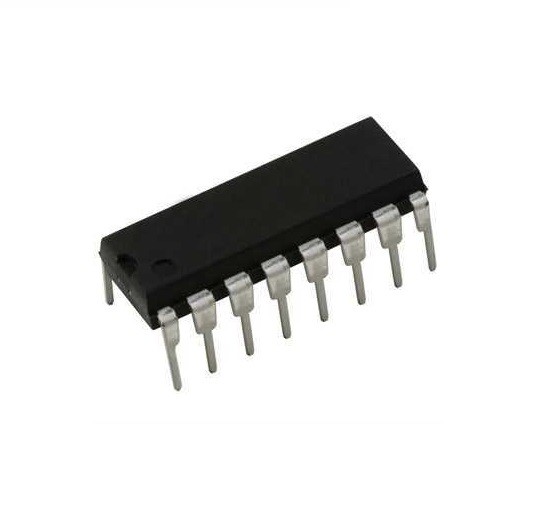

74F151 DIP IC 8 Input To 1 Output Multiplexer (74F151 IC)
The 74F151 is an 8 input to 1 output multiplexer integrated circuit designed for high speed data selection in digital systems. It selects one of eight input data lines and routes the selected input to a single output based on the binary address applied to the select inputs.
This IC belongs to the FAST TTL logic family and provides fast switching performance suitable for digital communication systems data routing circuits and microprocessor based applications. The DIP package allows easy integration in breadboard prototypes and PCB based digital electronics designs.
Key Features
- 8 input to 1 output multiplexer
- High speed FAST TTL logic family
- Three select inputs for data channel selection
- Suitable for digital data routing applications
- Complementary output signals available
- Reliable high speed data switching
- DIP package suitable for prototyping and PCB mounting
Specifications
- IC Model = 74F151
- Logic Type = 8 to 1 multiplexer
- Number Of Data Inputs = 8
- Number Of Select Inputs = 3
- Output Type = Single data output and complementary output
- Logic Family = FAST TTL
- Package Type = DIP
- Operating Voltage = 4.5V to 5.5V
- Application = Data selection signal routing and digital control circuits
Interfaces
- D0 = Data input 0
- D1 = Data input 1
- D2 = Data input 2
- D3 = Data input 3
- D4 = Data input 4
- D5 = Data input 5
- D6 = Data input 6
- D7 = Data input 7
- S0 = Select input bit 0
- S1 = Select input bit 1
- S2 = Select input bit 2
- G = Enable input
- Y = Multiplexer output
- YN = Complementary output
- VCC = Power supply
- GND = Ground
