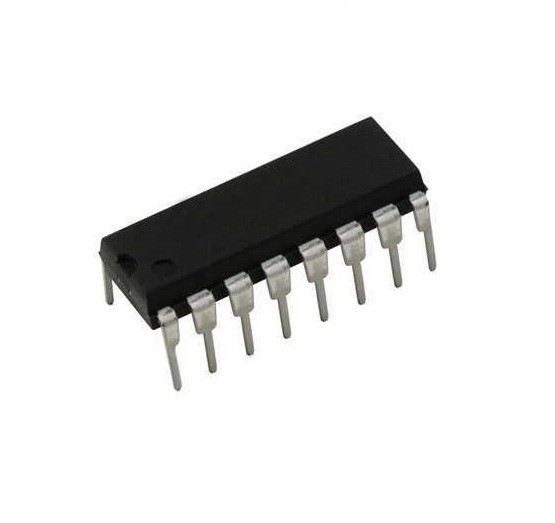

74F160 DIP IC 4 Bit Decade Counter (74F160 IC)

The 74F160 is a synchronous 4 bit decade counter integrated circuit designed for counting applications in digital systems. It counts from 0 to 9 in binary coded decimal format and resets automatically after reaching the maximum count value.

This IC belongs to the FAST TTL logic family and provides high speed counting with synchronous clock operation. It is commonly used in digital clocks event counters frequency division circuits and display systems. The DIP package makes it suitable for breadboard prototyping and PCB based digital electronics designs.

Key Features

• 4 bit synchronous decade counter
• Counts from 0 to 9 in BCD format
• High speed FAST TTL logic family
• Synchronous clock operation for reliable counting
• Suitable for digital counters and timing circuits
• Supports cascading for multi digit counting
• DIP package suitable for prototyping and PCB mounting

Specifications

• IC Model = 74F160
• Logic Type = 4 bit synchronous decade counter
• Count Range = 0 to 9 BCD
• Logic Family = FAST TTL
• Package Type = DIP
• Operating Voltage = 4.5V to 5.5V
• Clock Type = Synchronous clock input
• Application = Digital counters timers and frequency division circuits

Interfaces

• CLK = Clock input
• CLR = Clear reset input
• LOAD = Parallel load control
• ENP = Count enable input
• ENT = Count enable carry input
• D0 = Parallel data input bit 0
• D1 = Parallel data input bit 1
• D2 = Parallel data input bit 2
• D3 = Parallel data input bit 3
• Q0 = Output bit 0
• Q1 = Output bit 1
• Q2 = Output bit 2
• Q3 = Output bit 3
• RCO = Ripple carry output
• VCC = Power supply
• GND = Ground
