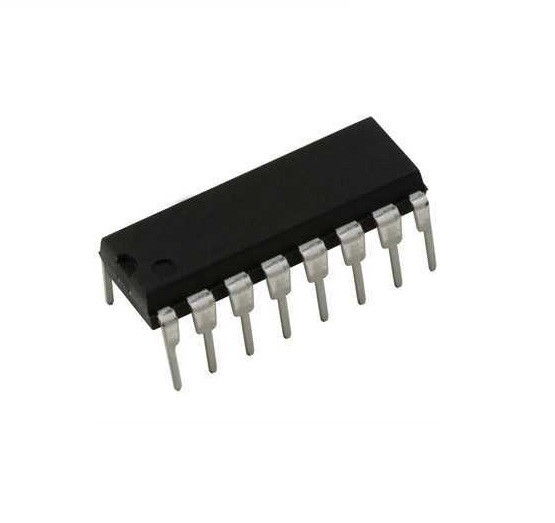

74F192 DIP IC Up Down Decade Counter (74F192 IC)
The 74F192 is a synchronous up down decade counter integrated circuit designed for counting operations in digital systems. It can count upward from 0 to 9 or downward from 9 to 0 depending on the control clock inputs allowing flexible counting control.
This IC belongs to the FAST TTL logic family and provides synchronous operation for reliable high speed counting. It is commonly used in digital clocks event counters frequency division circuits and numerical display systems. The DIP package allows easy integration in breadboard prototypes and PCB based digital electronics designs.
Key Features
- 4 bit synchronous up down decade counter
- Counts from 0 to 9 in BCD format
- Supports both up counting and down counting modes
- FAST TTL logic family for high speed operation
- Parallel load inputs for preset counting values
- Suitable for digital counters and display systems
- DIP package suitable for prototyping and PCB mounting
Specifications
- IC Model = 74F192
- Logic Type = Up down decade counter
- Count Range = 0 to 9 BCD
- Logic Family = FAST TTL
- Package Type = DIP
- Operating Voltage = 4.5V to 5.5V
- Clock Inputs = Separate up and down clock inputs
- Application = Digital counters timers and frequency division circuits
Interfaces
- CPU = Up count clock input
- CPD = Down count clock input
- CLR = Reset clear input
- LOAD = Parallel load control
- D0 = Parallel data input bit 0
- D1 = Parallel data input bit 1
- D2 = Parallel data input bit 2
- D3 = Parallel data input bit 3
- Q0 = Output bit 0
- Q1 = Output bit 1
- Q2 = Output bit 2
- Q3 = Output bit 3
- CARRY = Carry output for cascading
- BORROW = Borrow output for cascading
- VCC = Power supply
- GND = Ground
