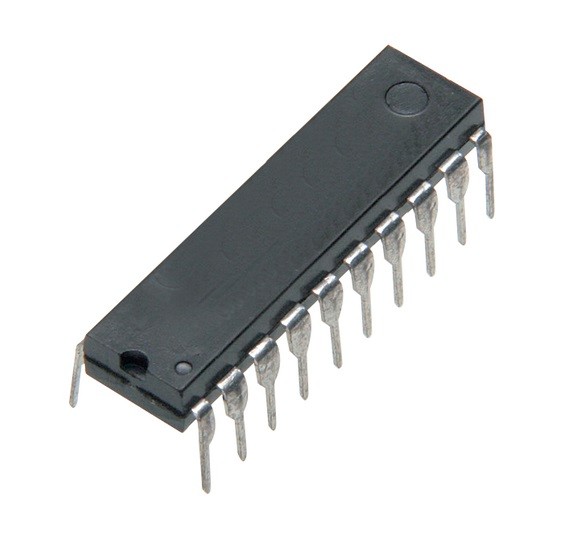

74F374 DIP IC Octal D Type Flip Flop with 3 State Outputs (74F374 IC)
The 74F374 is an octal D type flip flop integrated circuit designed for storing and transferring digital data in high speed logic systems. It contains eight edge triggered D type flip flops with a common clock input allowing simultaneous data storage on the rising edge of the clock signal.
This IC belongs to the FAST TTL logic family and includes three state outputs that allow the device to share data buses with other components. The outputs can be enabled or placed in a high impedance state using the output enable control making the device suitable for bus oriented digital systems and microprocessor based circuits.
Key Features
- Octal D type flip flop with edge triggered operation
- Three state outputs for shared bus systems
- Common clock input for synchronous data storage
- FAST TTL logic family for high speed performance
- Output enable control for bus isolation
- Suitable for registers buffers and data storage circuits
- DIP package suitable for prototyping and PCB mounting
Specifications
- IC Model = 74F374
- Logic Type = Octal D type flip flop
- Number Of Flip Flops = 8
- Logic Family = FAST TTL
- Package Type = DIP
- Pin Count = 20
- Operating Voltage = 4.5V to 5.5V
- Output Type = Three state
Interfaces
- D0 = Data input bit 0
- D1 = Data input bit 1
- D2 = Data input bit 2
- D3 = Data input bit 3
- D4 = Data input bit 4
- D5 = Data input bit 5
- D6 = Data input bit 6
- D7 = Data input bit 7
- Q0 = Output bit 0
- Q1 = Output bit 1
- Q2 = Output bit 2
- Q3 = Output bit 3
- Q4 = Output bit 4
- Q5 = Output bit 5
- Q6 = Output bit 6
- Q7 = Output bit 7
- CLK = Clock input
- OE = Output enable
- VCC = Power supply
- GND = Ground
