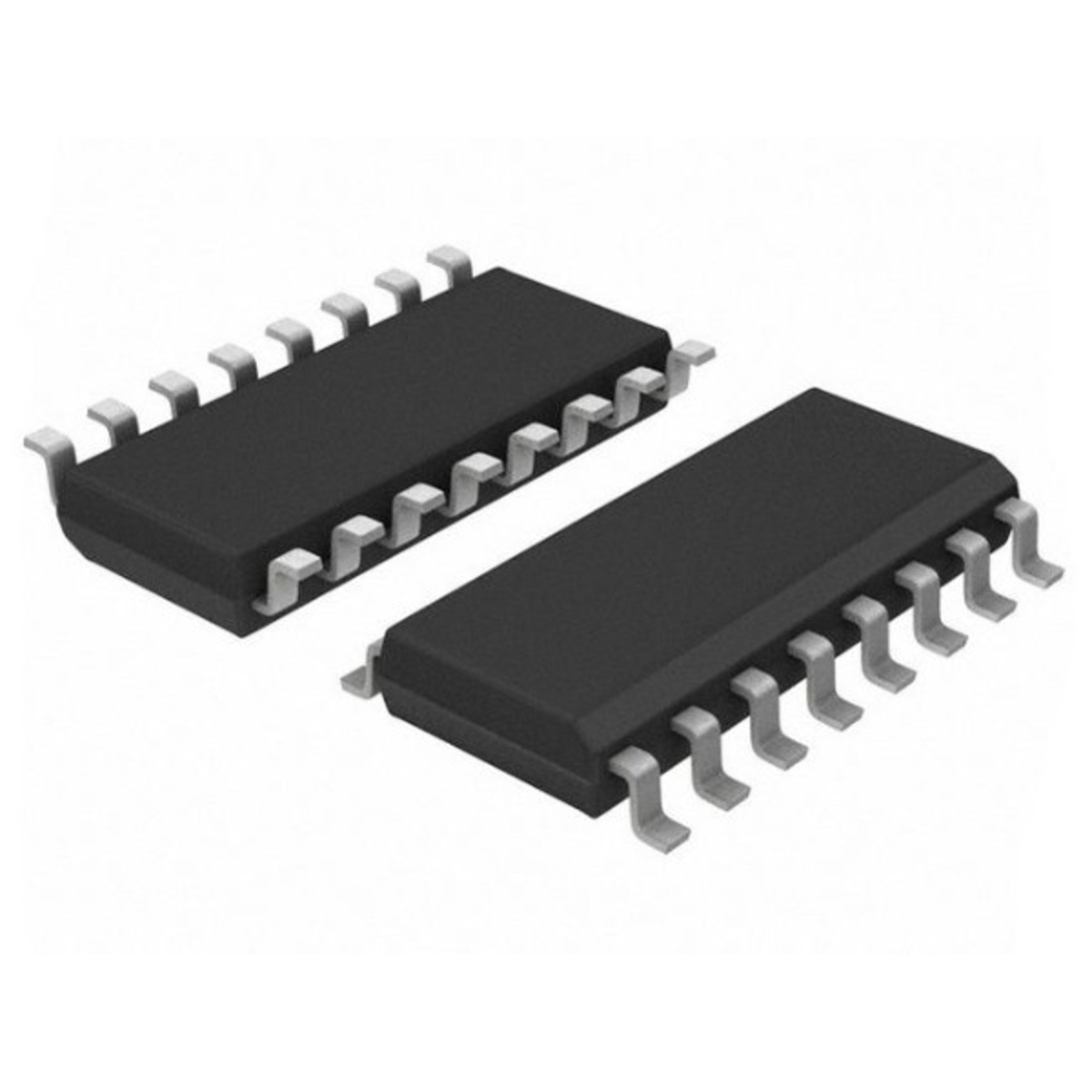

74HC139 Dual 2-to-4 Line Decoder Demultiplexer IC SOIC-16 (74HC139 SMD IC)

The 74HC139 is a high-speed CMOS Dual 2-to-4 Line Decoder and Demultiplexer IC designed for address decoding, data routing, memory selection, and digital control applications. Featuring two independent decoder sections in a compact SOIC-16 package, this IC provides reliable logic decoding with low power consumption and high noise immunity, making it suitable for embedded systems, industrial electronics, and digital circuit designs.

Key Features -

• Dual 2-to-4 line decoder/demultiplexer

• High-speed CMOS logic family

• Two independent decoder sections

• Active low outputs

• Low power consumption

• High noise immunity

• SOIC-16 surface mount package

Specifications -

• Product type - Decoder/Demultiplexer IC

• Model - 74HC139

• Logic family - High-Speed CMOS

• Function - Dual 2-to-4 Line Decoder and Demultiplexer

• Package type - SOIC-16

• Mounting type - Surface Mount Device (SMD)

• Number of sections - 2 Independent Decoders

• Inputs per section - 2 Address Inputs and 1 Enable Input

• Outputs per section - 4 Decoded Outputs

• Supply voltage - 2V to 6V

• Additional features - High-speed operation, low power dissipation, and TTL-compatible inputs

Applications -

• Memory address decoding

• Data routing circuits

• Microprocessor systems

• Embedded electronic designs

• Industrial control systems

• Digital logic applications

• Educational electronics projects
