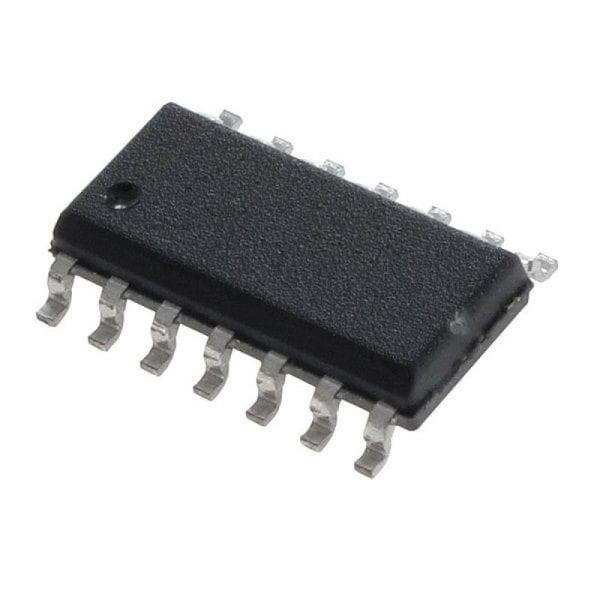

74HC164 SMD IC SOIC 14 Serial In Parallel Out Shift Register High Speed CMOS Logic IC (74HC164 IC)
₹ 17.70 (Inclusive of 18.00% GST)
Base Price: ₹ 15.00 | GST (18.00%): ₹ 2.70
In Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
74HC164 SMD IC SOIC 14 Serial In Parallel Out Shift Register High Speed CMOS Logic IC (74HC164 IC)
The 74HC164 is a high speed CMOS serial in parallel out shift register designed for data conversion and expansion in digital circuits. It converts serial data input into parallel output and is widely used in LED driving and microcontroller interfacing applications.
Key Features -
- 8 bit serial in parallel out shift register
- High speed CMOS logic operation
- Two serial data inputs for flexible control
- Asynchronous clear input
- Low power consumption
- SMD SOIC 14 package
Specifications -
- IC type - 8 bit shift register
- Logic family - HC CMOS
- Package type - SOIC 14 SMD
- Supply voltage - approx 2V to 6V
- Clock type - positive edge triggered
- Output type - standard CMOS output
- Propagation delay - approx 15ns typical
- Operating temperature - approx -40 to 85 degree C
Applications -
- Serial to parallel data conversion
- LED and display driving circuits
- Microcontroller I O expansion
- Data storage and transfer systems
- Digital communication circuits
- Embedded electronics
Pinout Configuration -
- A B - serial data inputs
- CLK - clock input
- CLR - asynchronous clear input
- Q0 to Q7 - parallel outputs
- Vcc - power supply
- GND - ground
