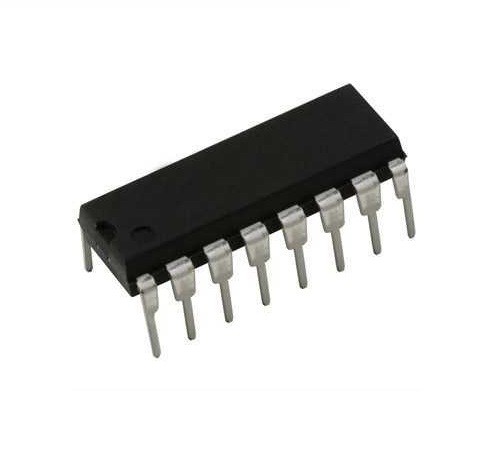

74HC259 8 Bit Addressable Latch IC DIP 16 (1 Qty)
The 74HC259 is a high speed CMOS 8 bit addressable latch IC designed for digital control, data storage and output expansion applications. It features eight individually addressable output latches controlled through three address inputs, allowing selective setting and resetting of output states. With a 2V to 6V operating voltage range, latch enable control and asynchronous reset functionality, it provides reliable performance in digital logic circuits. Its DIP 16 through hole package makes it suitable for embedded systems, industrial controllers and electronic development projects.
Key Features
• 8 bit addressable latch with independent outputs
• Three address inputs for output selection
• Individual output setting and resetting
• High speed 74HC CMOS logic design
• Latch enable and asynchronous reset functions
• Low power consumption
• DIP 16 through hole package
