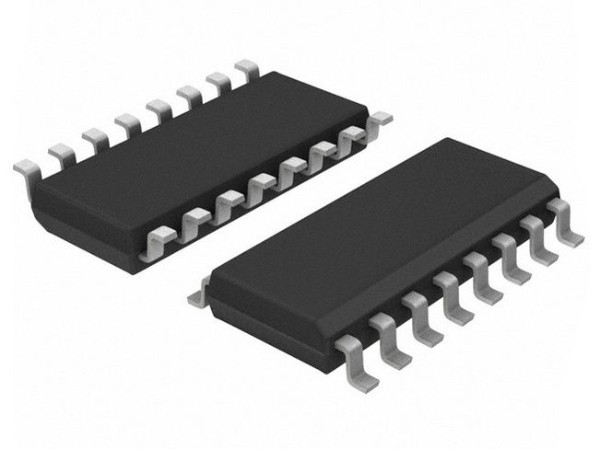

74HC259 SMD IC SOIC 16 Addressable Latch 8 Bit Storage Register High Speed CMOS Logic IC (74HC259 IC)
₹ 17.70 (Inclusive of 18.00% GST)
Base Price: ₹ 15.00 | GST (18.00%): ₹ 2.70
In Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
74HC259 SMD IC SOIC 16 Addressable Latch 8 Bit Storage Register High Speed CMOS Logic IC (74HC259 IC)
The 74HC259 is a high speed CMOS addressable latch designed for digital storage and output control applications. It allows individual bit control using address lines and data input making it suitable for output expansion and control systems.
Key Features -
- 8 bit addressable latch
- Individual bit set and reset capability
- Three address inputs for bit selection
- Data input for latch control
- Clear input for resetting outputs
- High speed CMOS logic operation
- Low power consumption
- SMD SOIC 16 package
Specifications -
- IC type - addressable latch 8 bit
- Logic family - HC CMOS
- Package type - SOIC 16 SMD
- Supply voltage - approx 2V to 6V
- Input type - TTL compatible CMOS
- Output type - latched outputs
- Propagation delay - approx 15ns typical
- Operating temperature - approx -40 to 85 degree C
Applications -
- Output expansion for microcontrollers
- Digital control systems
- LED and relay control
- Memory addressing and control logic
- Industrial automation systems
- Embedded electronics
Pinout Configuration -
- A0 A1 A2 - address inputs
- D - data input
- Q0 to Q7 - latched outputs
- CLR - clear input
- G - enable input
- Vcc - power supply
- GND - ground
