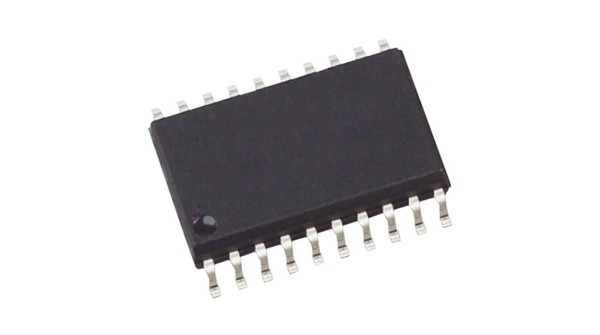

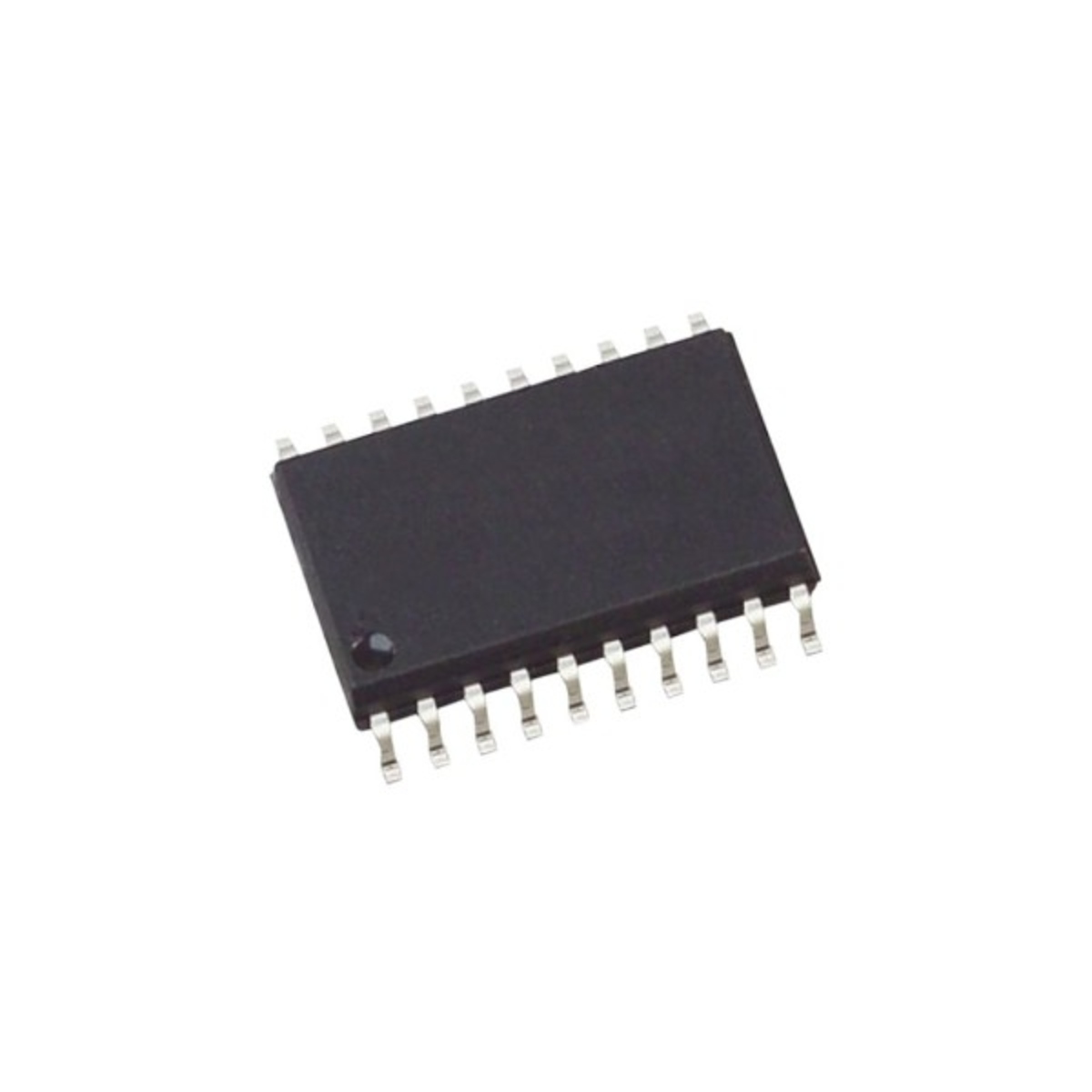

74HC273 SMD Octal D-Type Flip-Flop IC SOIC-20 (74HC273 High Speed CMOS Logic IC)

The 74HC273 is an octal D-type flip-flop IC featuring eight edge-triggered flip-flops with a common clock and asynchronous clear input. Built using high-speed CMOS technology, it is designed for data storage, buffering, register applications, microprocessor interfacing, and digital logic systems requiring reliable parallel data handling.

Key Features -

• Octal D-type flip-flop configuration

• Eight independent data storage stages

• Common clock input

• Asynchronous clear function

• High-speed CMOS logic technology

• Low power consumption

• SOIC-20 SMD package

Specifications -

• Product type - D-Type Flip-Flop IC

• Model - 74HC273

• Logic family - High Speed CMOS

• Function - Octal D-Type Flip-Flop with Clear

• Number of flip-flops - 8

• Clock type - Positive Edge Triggered

• Clear input - Asynchronous Clear

• Package type - SOIC-20

• Mounting type - SMD

• Operating voltage - 2V to 6V

Applications -

• Data storage registers

• Microprocessor interfacing

• Digital buffering circuits

• Embedded systems

• Industrial automation

• Data acquisition systems

• Digital logic projects
