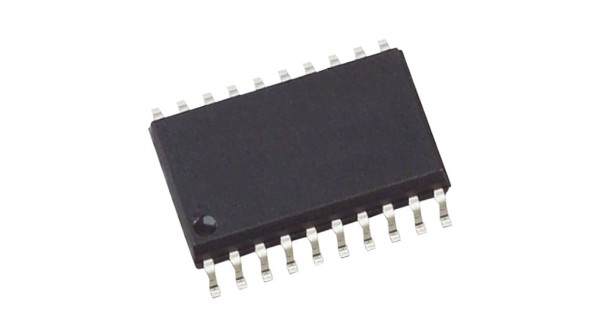

74HC373 SMD IC SOIC 20 Octal Transparent Latch Tri State Output High Speed CMOS Logic IC (74HC373 IC)

The 74HC373 is a high speed CMOS octal transparent latch designed for data storage and bus interfacing applications. It allows data to pass through when enabled and latches the data when the enable signal is disabled.

Key Features -

• Octal transparent latch 8 bit
• Tri state outputs for bus control
• Transparent mode with latch enable input
• Output enable control for high impedance state
• High speed CMOS logic operation
• Low power consumption
• SMD SOIC 20 package

Specifications -

• IC type - octal transparent latch
• Logic family - HC CMOS
• Package type - SOIC 20 SMD
• Supply voltage - approx 2V to 6V
• Input type - TTL compatible CMOS
• Output type - tri state outputs
• Propagation delay - approx 13ns typical
• Operating temperature - approx -40 to 85 degree C

Applications -

• Data latching and storage
• Bus interfacing and buffering
• Microcontroller and memory interfacing
• Address and data bus systems
• Digital logic circuits
• Embedded electronics

Pinout Configuration -

• D0 to D7 - data inputs
• Q0 to Q7 - outputs
• LE - latch enable input
• OE - output enable active low
• Vcc - power supply
• GND - ground
