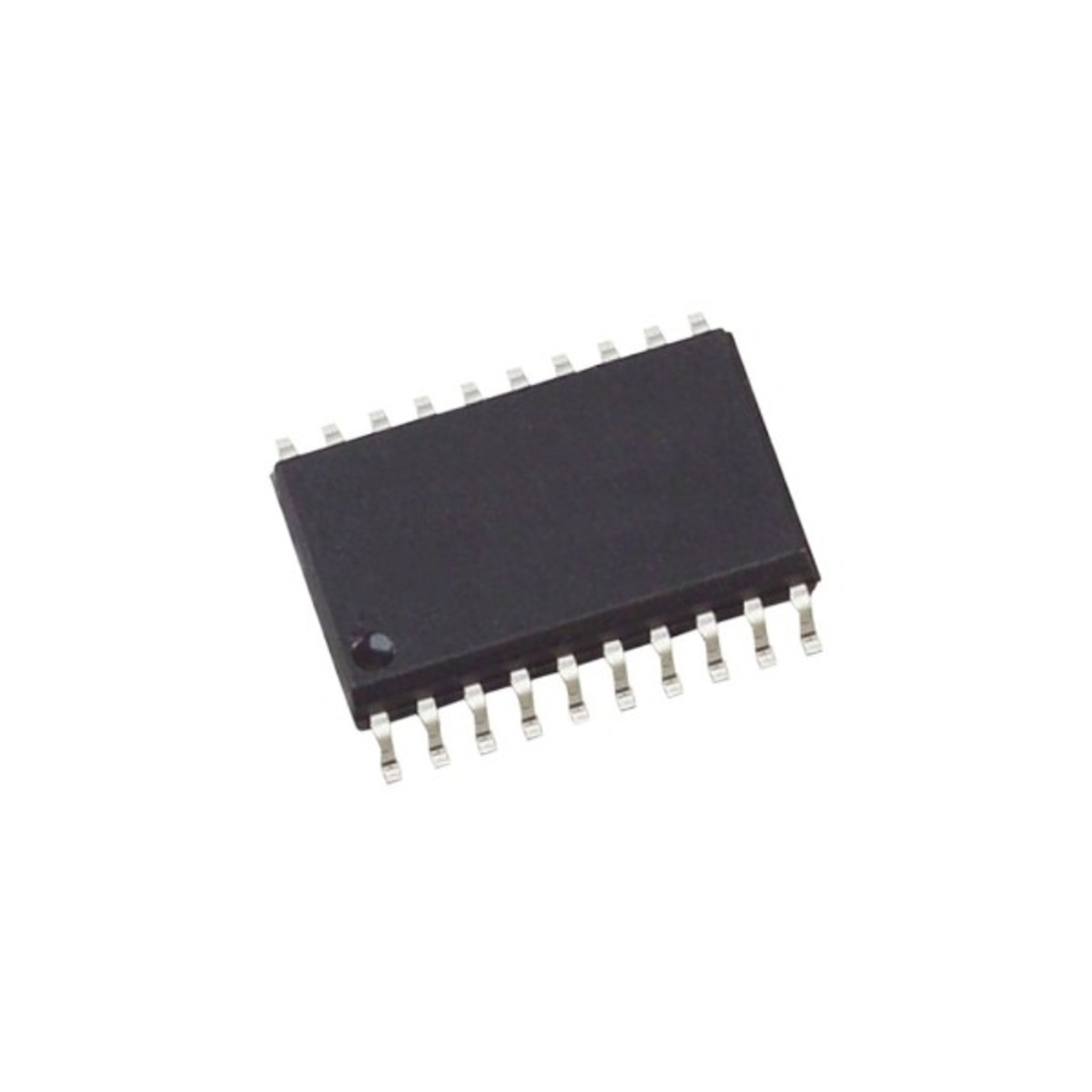

74HC374 Octal D-Type Flip Flop IC SOIC-20 Tri-State Output High Speed CMOS Logic IC (74HC374 IC)

The 74HC374 is a high-speed CMOS octal D-type flip-flop IC featuring eight edge-triggered D-type flip-flops with 3-state outputs. It is designed for data storage, buffering, bus-oriented applications, and digital signal processing circuits. The tri-state outputs allow direct interfacing with shared data buses, making it widely used in microprocessor and digital logic systems.

Key Features -

• Octal D-type flip-flop architecture

• Eight independent D-type flip-flops

• Tri-state output capability

• High-speed CMOS logic operation

• Positive edge-triggered clock input

• Low power consumption

• Bus-oriented data storage design

• SOIC-20 surface mount package

Specifications -

• Product type - Logic IC

• Model - 74HC374

• Logic family - High Speed CMOS

• Function - Octal D-Type Flip Flop

• Number of flip-flops - 8

• Output type - Tri-State Outputs

• Trigger type - Positive Edge Triggered

• Package type - SOIC-20

• Mounting type - Surface Mount Device

• Application - Data Storage and Bus Interface

Applications -

• Data latching circuits

• Microprocessor systems

• Digital data storage

• Bus interface circuits

• Embedded electronics

• Industrial control systems

• Digital communication equipment
