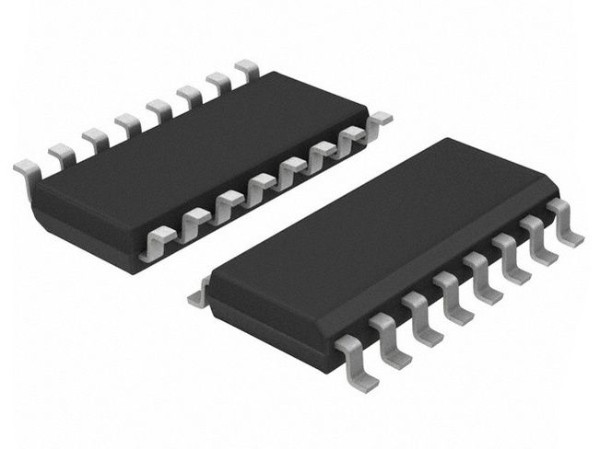

74HC4049 SMD IC SOIC 16 Hex Inverting Buffer Level Shifter High Speed CMOS Logic IC (74HC4049 IC)

SKU: ICS-79Category: Electronic Components
₹ 17.70 (Inclusive of 18.00% GST)
Base Price: ₹ 15.00 | GST (18.00%): ₹ 2.70
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

74HC4049 SMD IC SOIC 16 Hex Inverting Buffer Level Shifter High Speed CMOS Logic IC (74HC4049 IC)

The 74HC4049 is a high speed CMOS hex inverting buffer designed for signal inversion and level shifting applications. It provides six independent inverters and is widely used for interfacing between different voltage levels in digital systems.

Key Features -

  • Hex inverting buffer 6 independent inverters
  • Suitable for logic level shifting applications
  • High speed CMOS operation
  • Wide supply voltage range
  • High noise immunity
  • Low power consumption
  • SMD SOIC 16 package

Specifications -

  • IC type - hex inverter buffer
  • Logic family - HC CMOS
  • Package type - SOIC 16 SMD
  • Supply voltage - approx 3V to 15V
  • Input type - CMOS compatible
  • Output type - inverting output
  • Propagation delay - approx 15ns typical
  • Output current - approx 10mA typical
  • Operating temperature - approx -40 to 85 degree C

Applications -

  • Signal inversion circuits
  • Logic level shifting
  • Microcontroller interfacing
  • Wave shaping and buffering
  • Digital logic circuits
  • Embedded electronics

Pinout Configuration -

  • A1 to A6 - input pins
  • Y1 to Y6 - output pins inverted
  • Vcc - power supply
  • GND - ground
