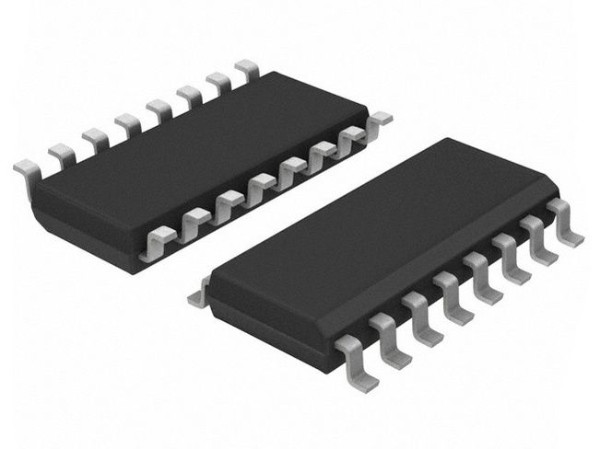

74HC4050 SMD IC SOIC 16 Hex Non Inverting Buffer Level Shifter High Speed CMOS Logic IC (74HC4050 IC)

SKU: ICS-80Category: Electronic Components
₹ 35.40 (Inclusive of 18.00% GST)
Base Price: ₹ 30.00 | GST (18.00%): ₹ 5.40
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

74HC4050 SMD IC SOIC 16 Hex Non Inverting Buffer Level Shifter High Speed CMOS Logic IC (74HC4050 IC)

The 74HC4050 is a high speed CMOS hex non inverting buffer designed for signal buffering and voltage level shifting applications. It allows interfacing between different logic levels while providing stable output and high noise immunity.

Key Features -

  • Hex non inverting buffer 6 channels
  • Suitable for logic level shifting applications
  • High speed CMOS operation
  • Wide input voltage tolerance
  • High noise immunity
  • Low power consumption
  • SMD SOIC 16 package

Specifications -

  • IC type - hex buffer non inverting
  • Logic family - HC CMOS
  • Package type - SOIC 16 SMD
  • Supply voltage - approx 3V to 15V
  • Input type - high voltage tolerant CMOS
  • Output type - non inverting output
  • Propagation delay - approx 15ns typical
  • Output current - approx 10mA typical
  • Operating temperature - approx -40 to 85 degree C

Applications -

  • Logic level shifting circuits
  • Microcontroller interfacing
  • Signal buffering and isolation
  • Digital communication systems
  • Embedded electronics
  • Industrial control circuits

Pinout Configuration -

  • A1 to A6 - input pins
  • Y1 to Y6 - output pins
  • Vcc - power supply
  • GND - ground
