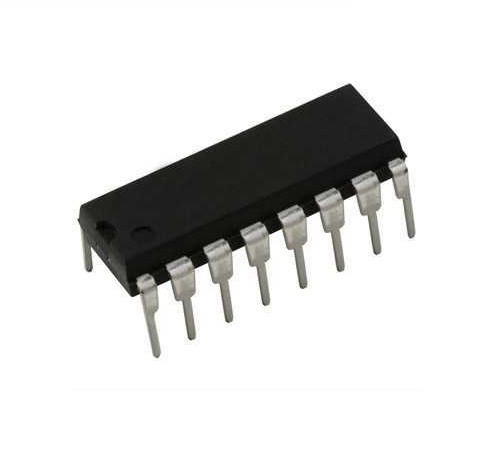

74HC4051 8-Channel Analog Multiplexer Demultiplexer IC DIP-16 (74HC4051 Analog Switch IC)

The 74HC4051 is an 8-channel analog multiplexer and demultiplexer IC designed for routing analog or digital signals between multiple inputs and a single output. Built using high-speed CMOS technology, this versatile IC enables efficient signal switching, data acquisition, sensor interfacing, and communication applications while maintaining low power consumption and excellent signal integrity.

Key Features -

• 8-channel analog multiplexer/demultiplexer

• Supports both analog and digital signals

• High-speed CMOS technology

• Low ON resistance

• Wide operating voltage range

• Low power consumption

• DIP-16 through hole package

Specifications -

• Product type - Analog multiplexer/demultiplexer IC

• Model - 74HC4051

• Function - 8-channel analog switch

• Logic family - High-Speed CMOS

• Package type - DIP-16

• Mounting type - Through Hole Mount

• Number of channels - 8

• Signal type - Analog and digital

• Control inputs - 3-bit address selection

• Additional features - Low leakage current, high noise immunity, and bidirectional signal switching

Applications -

• Data acquisition systems

• Sensor multiplexing

• Audio signal switching

• Test and measurement equipment

• Industrial control systems

• Microcontroller interfacing

• Embedded electronics projects
