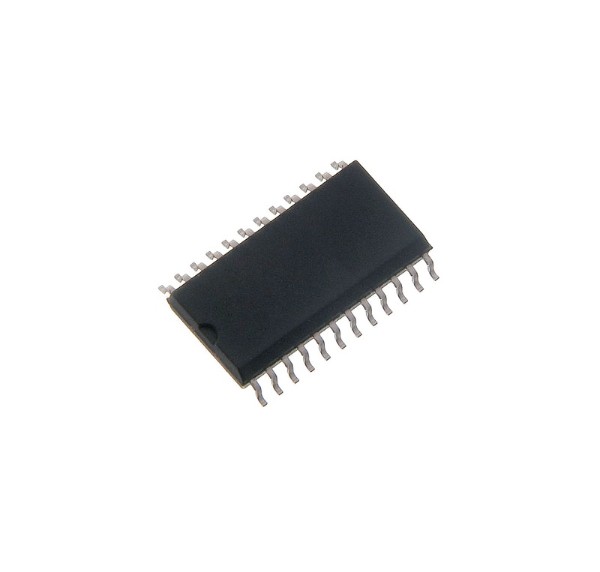

74HC4067 SMD IC SOIC 24 16 Channel Analog Multiplexer Demultiplexer High Speed CMOS Logic IC (74HC4067 IC)

The 74HC4067 is a high speed CMOS 16 channel analog multiplexer/demultiplexer designed for signal routing and switching applications. It allows one of sixteen analog or digital inputs to be connected to a common output using four select lines.

Key Features -

• 16 channel analog multiplexer demultiplexer
• Bidirectional signal switching capability
• Four address select inputs
• Wide analog and digital signal range support
• Low ON resistance switching
• Enable inhibit control input
• High speed CMOS logic operation
• SMD SOIC 24 package

Specifications -

• IC type - 16 channel analog multiplexer demultiplexer
• Logic family - HC CMOS
• Package type - SOIC 24 SMD
• Supply voltage - approx 2V to 10V
• Input voltage range - up to supply voltage level
• ON resistance - approx 70 ohm typical
• Propagation delay - approx 20ns typical
• Operating temperature - approx -40 to 85 degree C

Applications -

• Sensor multiplexing systems
• Data acquisition systems
• Audio signal routing
• Test and measurement equipment
• Microcontroller interfacing
• Industrial automation systems

Pinout Configuration -

• X0 to X15 - channel inputs outputs
• COM - common input output
• S0 S1 S2 S3 - address select inputs
• EN - enable inhibit control
• Vcc - power supply
• GND - ground
