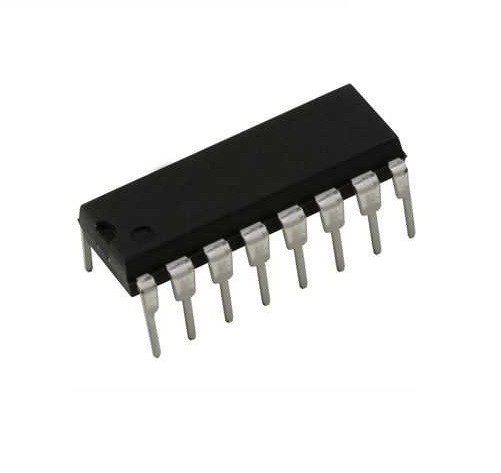

74HCT151 8-Input Data Selector Multiplexer IC DIP-16 (74HCT151 IC)

The 74HCT151 is a high-speed CMOS 8-input data selector and multiplexer IC designed to route one of eight digital input signals to a single output. It is widely used in digital logic systems, data routing, signal selection, communication equipment, embedded systems, and industrial control applications.

The IC features eight binary data inputs, three select inputs, and complementary outputs, making it suitable for efficient data switching and logic control functions.

Key Features -

• 8-input data selector and multiplexer

• High-speed HCT CMOS logic

• Three binary select inputs

• Single output data routing

• Complementary outputs available

• Low power consumption

• DIP-16 through-hole package

Specifications -

• Product type - Multiplexer IC

• Model - 74HCT151

• Logic family - HCT CMOS

• Function - 8-to-1 Data Selector Multiplexer

• Number of inputs - 8

• Number of outputs - 1 Main Output with Complementary Output

• Select lines - 3

• Package type - DIP-16

• Mounting type - Through Hole Mount

• Operating voltage - 4.5V to 5.5V

Applications -

• Digital signal selection

• Data routing circuits

• Embedded systems

• Industrial automation

• Communication equipment

• Logic design projects

• Microcontroller interfacing
