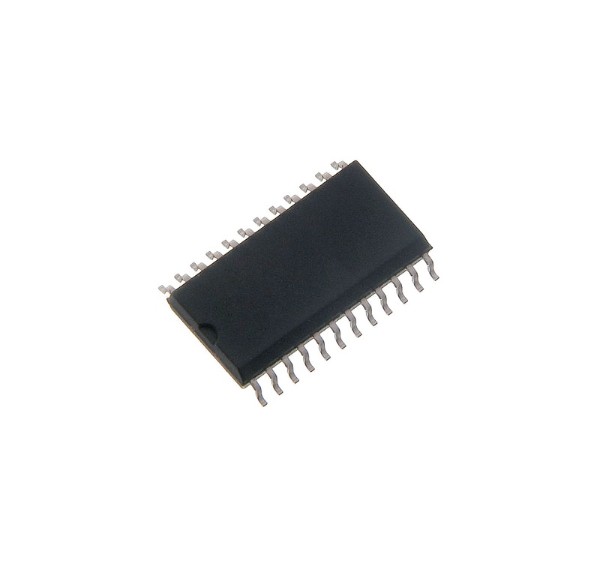

74HCT154 SMD IC SOIC 24 4 to 16 Line Decoder Demultiplexer TTL Compatible High Speed CMOS Logic IC (74HCT154 IC)

SKU: ICS-95Category: Electronic Components
₹ 29.50 (Inclusive of 18.00% GST)
Base Price: ₹ 25.00 | GST (18.00%): ₹ 4.50
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

74HCT154 SMD IC SOIC 24 4 to 16 Line Decoder Demultiplexer TTL Compatible High Speed CMOS Logic IC (74HCT154 IC)

The 74HCT154 is a high speed CMOS 4 to 16 line decoder/demultiplexer with TTL compatible input levels. It converts a 4 bit binary input into one of sixteen active low outputs, making it ideal for address decoding and data selection in digital systems.

Key Features -

  • 4 to 16 line decoder demultiplexer
  • Active low outputs
  • TTL compatible input levels (HCT series)
  • Two enable inputs for control
  • High speed CMOS logic performance
  • Low power consumption
  • SMD SOIC 24 package

Specifications -

  • IC type - 4 to 16 decoder demultiplexer
  • Logic family - HCT CMOS TTL compatible
  • Package type - SOIC 24 SMD
  • Supply voltage - approx 4.5V to 5.5V
  • Input type - TTL compatible
  • Output type - active low outputs
  • Propagation delay - approx 15ns typical
  • Operating temperature - approx -40 to 85 degree C

Applications -

  • Memory address decoding
  • Data routing and selection
  • Microcontroller interfacing
  • Digital logic circuits
  • Industrial automation systems
  • Embedded electronics

Pinout Configuration -

  • A B C D - binary input lines
  • G1 G2 - enable inputs active low
  • Y0 to Y15 - decoded outputs active low
  • Vcc - power supply
  • GND - ground
