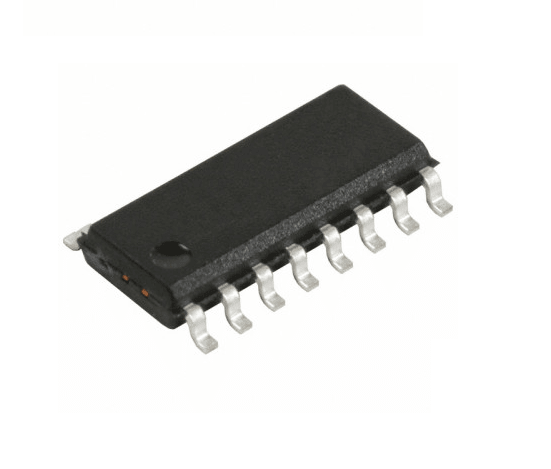

74HCT165 SMD IC SOIC 16 Parallel In Serial Out Shift Register TTL Compatible High Speed CMOS Logic IC (74HCT165 IC)
₹ 35.40 (Inclusive of 18.00% GST)
Base Price: ₹ 30.00 | GST (18.00%): ₹ 5.40
Out of Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
74HCT165 SMD IC SOIC 16 Parallel In Serial Out Shift Register TTL Compatible High Speed CMOS Logic IC (74HCT165 IC)
The 74HCT165 is a high speed CMOS parallel in serial out shift register with TTL compatible input levels. It is designed for efficient data acquisition and input expansion in digital systems by converting parallel inputs into serial data output.
Key Features -
- 8 bit parallel in serial out shift register
- TTL compatible input levels (HCT series)
- Asynchronous parallel load capability
- Clock inhibit and clock control
- Complementary serial outputs available
- High speed CMOS logic performance
- Low power consumption
- SMD SOIC 16 package
Specifications -
- IC type - parallel in serial out shift register
- Logic family - HCT CMOS TTL compatible
- Package type - SOIC 16 SMD
- Supply voltage - approx 4.5V to 5.5V
- Input type - TTL compatible
- Output type - serial output Q7 and Q7 bar
- Clock type - positive edge triggered
- Propagation delay - approx 10ns to 15ns typical
- Operating temperature - approx -40 to 85 degree C
Applications -
- Microcontroller input expansion
- Keyboard and switch interfacing
- Data acquisition systems
- Parallel to serial data conversion
- Digital communication circuits
- Embedded electronics
Pinout Configuration -
- A to H - parallel data inputs
- PL - parallel load input active low
- CP - clock input
- CE - clock enable inhibit
- Q7 - serial output
- Q7 bar - complementary output
- Vcc - power supply
- GND - ground
